Question: A rectongular beam section shown in the figure below is rubjected to an ultimate design moment of 2 5 0 kNm . Determine if it

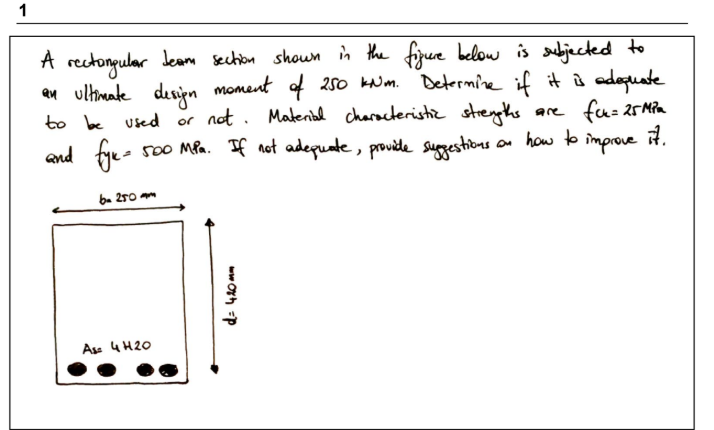

A rectongular beam section shown in the figure below is rubjected to an ultimate design moment of 250 kNm . Determine if it is adequate to be used or not. Material characteristic stienths are fu \(=25\mathrm{MP}\) and \( f_{y c}=500\mathrm{MPa}\). If not adequate, provide sugestions on how to improve it.
A rectongular beam section shown in the figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
