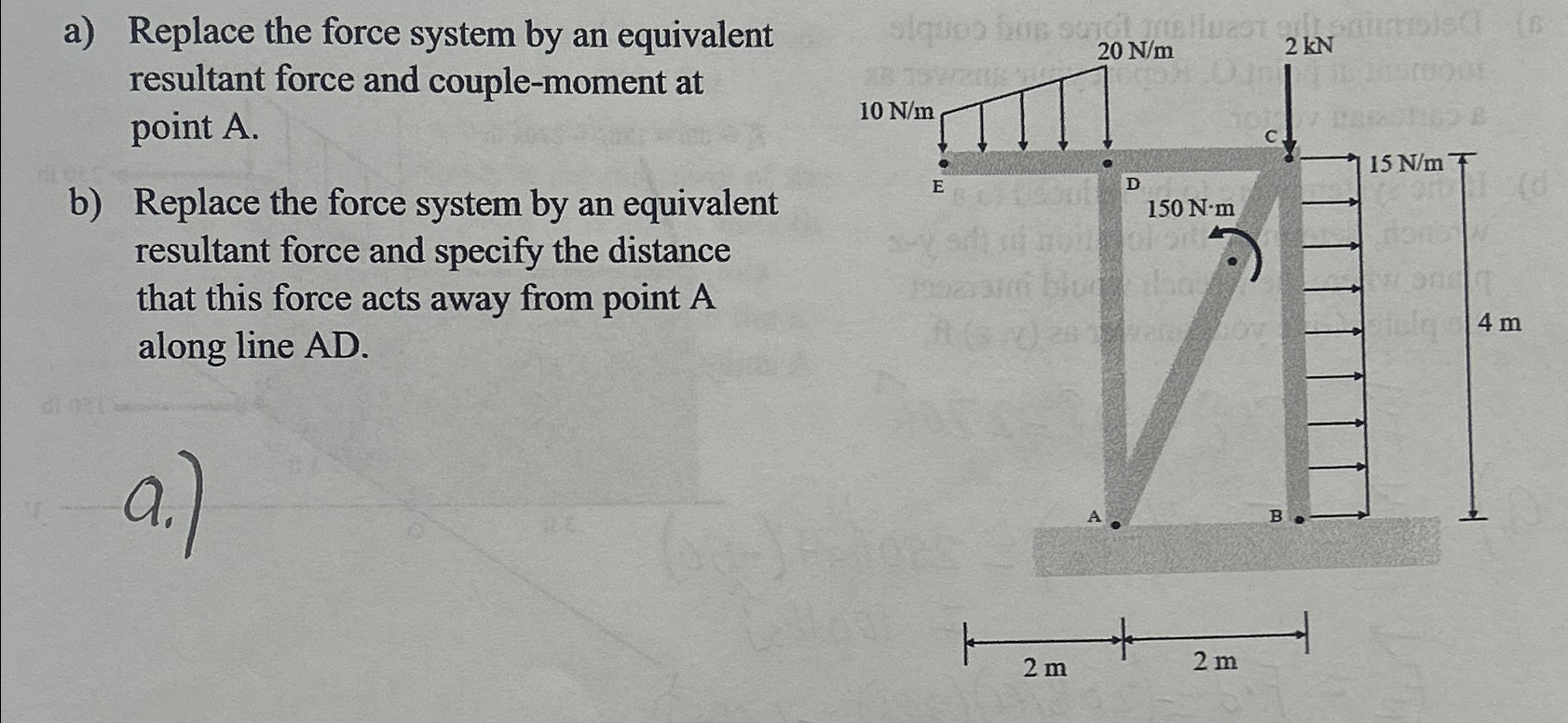

Question: a ) Replace the force system by an equivalent resultant force and couple - moment at point A . b ) Replace the force system

a) Replace the force system by an equivalent resultant force and couple-moment at point A.
b) Replace the force system by an equivalent resultant force and specify the distance that this force acts away from point A along line AD.
a ) Replace the force system by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
