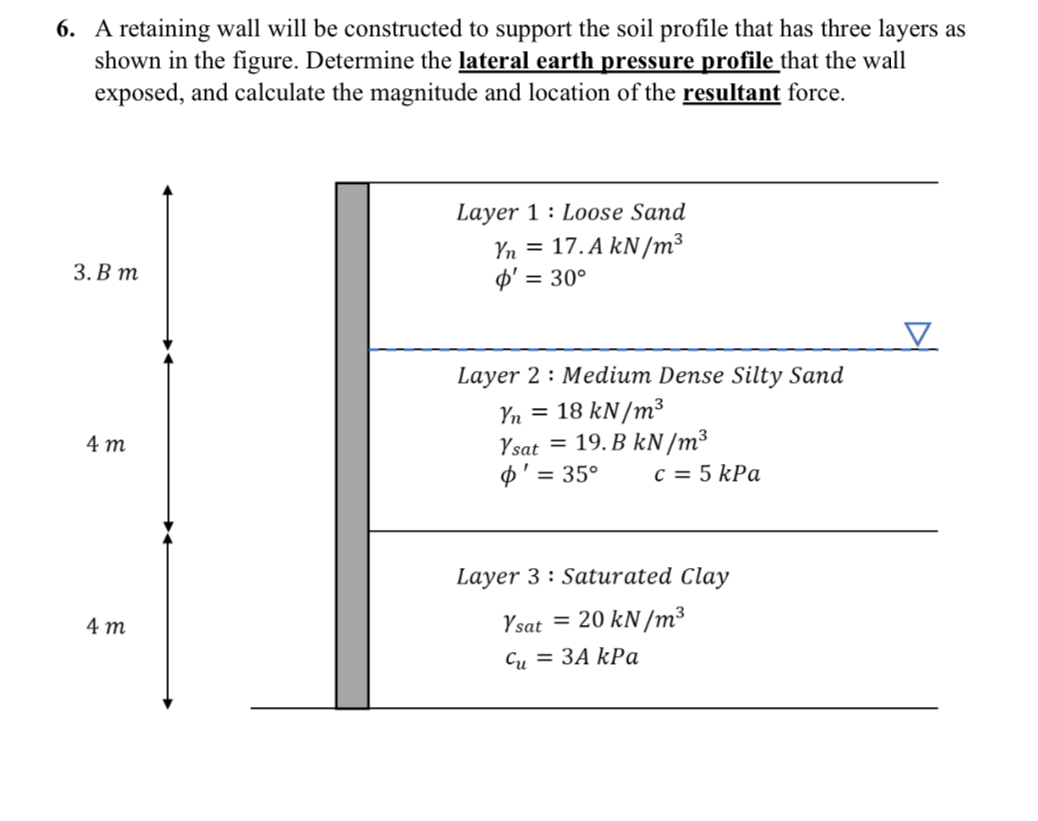

Question: A retaining wall will be constructed to support the soil profile that has three layers as shown in the figure. Determine the lateral earth pressure

A retaining wall will be constructed to support the soil profile that has three layers as shown in the figure. Determine the lateral earth pressure profile that the wall exposed, and calculate the magnitude and location of the resultant force.
