Question: A rigid rod A B is attached to a hinge at A and to two springs, each of constant k = 2 k i p

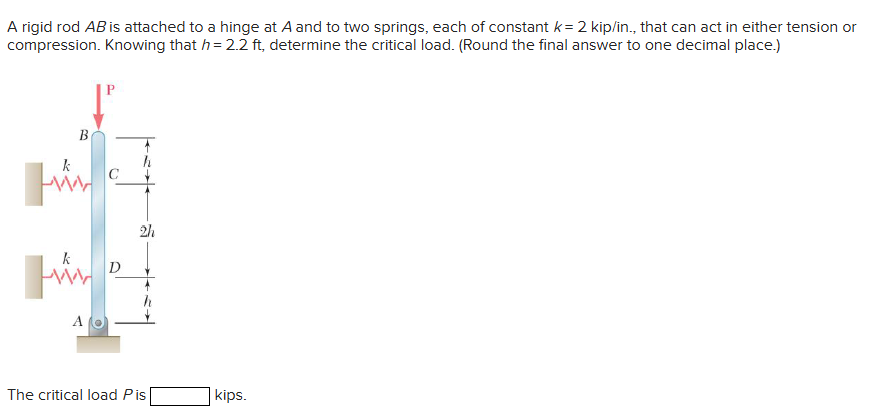

A rigid rod AB is attached to a hinge at A and to two springs, each of constant k=2kipin., that can act in either tension or
compression. Knowing that h=2.2ft, determine the critical load. (Round the final answer to one decimal place.)
A rigid rod A B is attached to a hinge at A and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Rod AB is attached to a hinge at A and to two springs, each of constant 1.35 k = kN/m. (a) Determine the mass m of the block C for which the period of small oscillations is 4 s. (b) If end B is...

Q:

Rod AB is attached to a hinge at A and to two springs, each of constant k. If h = 700 mm, d = 300 mm, and m = 20 kg, determine the value of k for which the period of small oscillations is (a) 1 s,...

Q:

Rod AB is attached to a hinge at A and to two springs of constant k that are unstretched in the position shown. If h = 30 in., k = 4 lb/in., and W = 40 lb, determine the smallest distance d for which...

Q:

Rod AB is attached to a hinge at A and to two springs, each of constant k. If h = 25 in., d = 12 in., and W = 80 lb, determine the range of values of k for which the equilibrium of the rod is stable...

Q:

Rod AB is attached to a hinge at A and to two springs of constant k that are unstretched in the position shown. If 50 h = in., d = 24 in., and W = 160 lb, determine the range of values of k for which...

Q:

Rod AB is attached to a hinge at A and to two springs, each of constant k. If h = 45 in., k = 6 lb/in., and W = 60 lb, determine the smallest distance d for which the equilibrium of the rod is stable...

Q:

A 1.2-kg uniform rod AB is attached to a hinge at A and to two springs, each of constant 450 k = N/m. (a) Determine the mass m of block C for which the period of small oscillations is 0.6s. (b) If...

Q:

Fig. Q1 shows an inverted pendulum consisting of a spherical ball of radius R and mass m and a uniform rod of mass my and length a. Pendulum is pivoted at O. Two springs, each of stiffness k, are...

Q:

Rod AB is rigidly attached to the frame of a motor running at a constant speed. When a collar of mass m is placed on the spring, it is observed to vibrate with an amplitude of 15 mm. When two...

Q:

A 1.50 m long stick with a mass of 030 kg is pivoted on a hinge at one end and held horizontally by a spring with spring constant 10 N/m attached at the other end' What is the frequency (in Hz) of...
