Question: A rope is run over a tree branch to pull an object weighing 3 . 4 kN up an incline. Given angles = 2 5

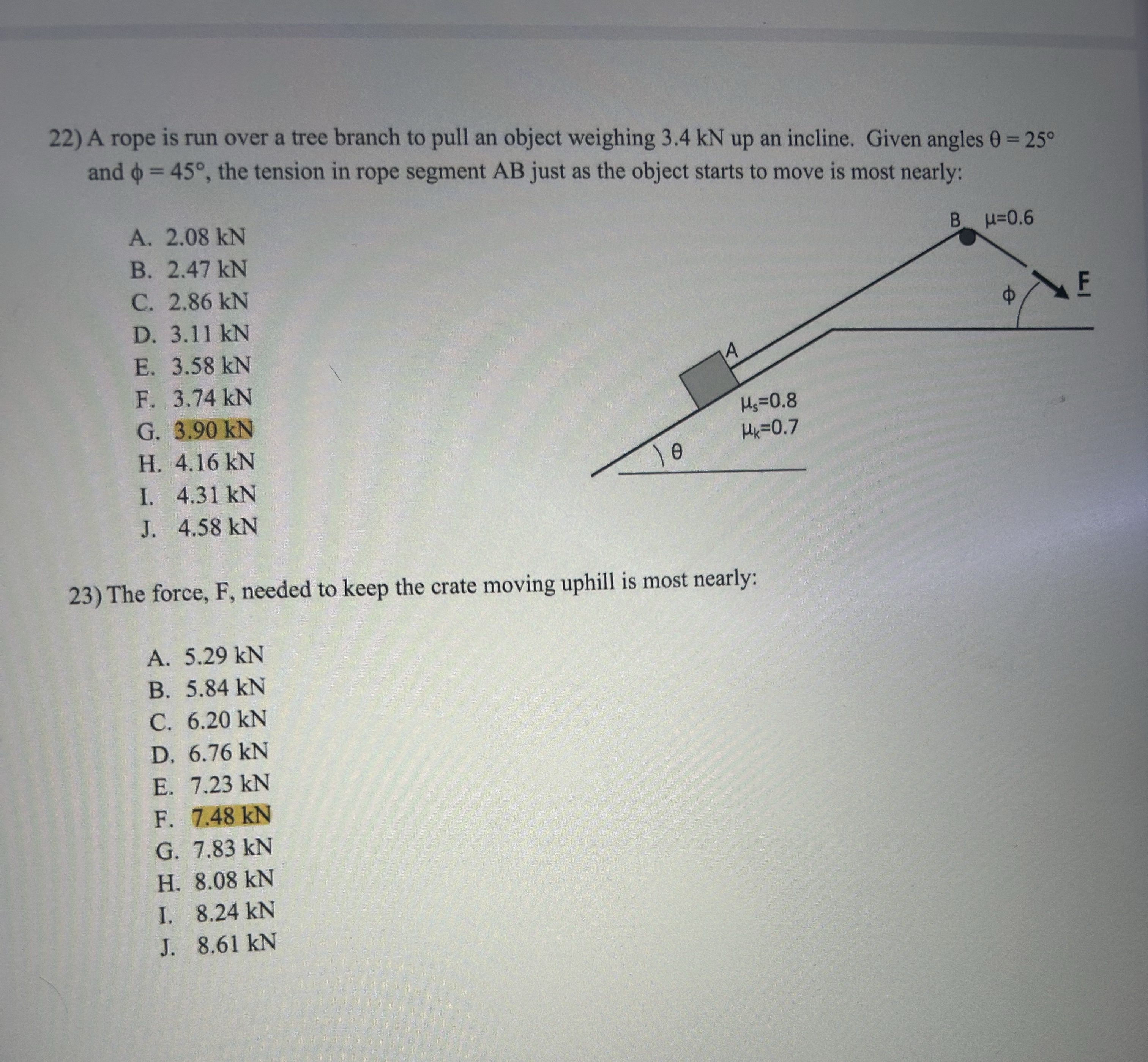

A rope is run over a tree branch to pull an object weighing 3.4 kN up an incline. Given angles =25 and =45, the tension in rope segment AB just as the object starts to move is most nearly:
A.2.08 kN
B.2.47 kN
C.2.86 kN
D.3.11 kN
E.3.58 kN
F.3.74 kN
G.3.90 kN
H.4.16 kN
I. 4.31 kN
J.4.58 kN
The force, F, needed to keep the crate moving uphill is most nearly:
A.5.29 kN
B.5.84 kN
C.6.20 kN
D.6.76 kN
E.7.23 kN
F.7.48 kN
G.7.83 kN
H.8.08 kN
I. 8.24 kN
J.8.61 kN
A rope is run over a tree branch to pull an
