Question: A rotating step shaft is loaded as shown, where the forces F A and F B are constant at 5 6 0 lbf and 2

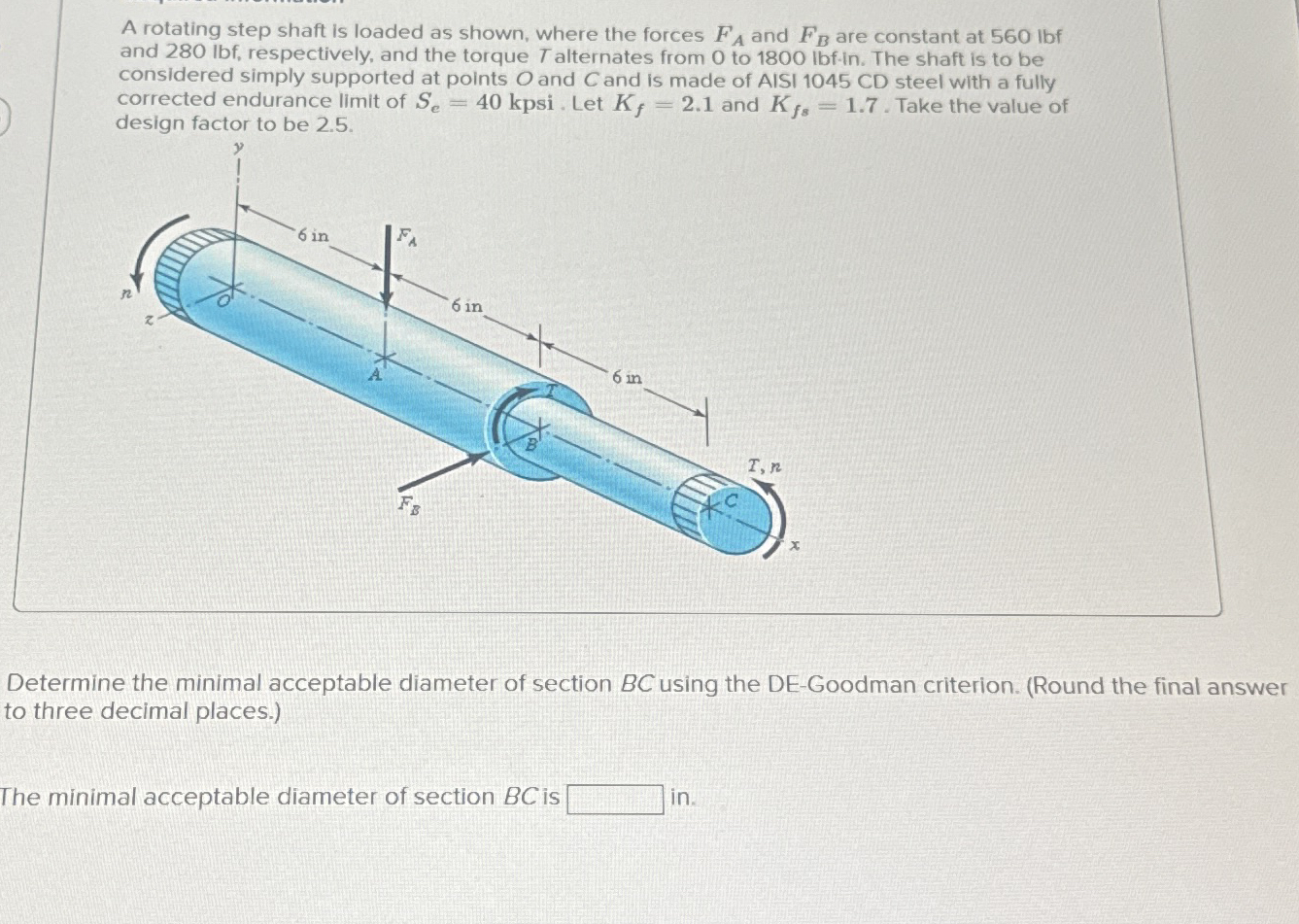

A rotating step shaft is loaded as shown, where the forces FA and FB are constant at 560 lbf and 280 lbf , respectively, and the torque T alternates from 0 to 1800 lbf in . The shaft is to be considered simply supported at points O and C and is made of AISI 1045 CD steel with a fully corrected endurance limit of Se=40k. Let Kf=2.1 and Kfs=1.7. Take the value of design factor to be 2.5.
Determine the minimal acceptable diameter of section BC using the DE-Goodman criterion. (Round the final answer to three decimal places.)
The minimal acceptable diameter of section BC is in.
