Question: A Select Structural grade Hem - Fir ( F c = 1 , 7 0 0 E = 1 , 4 5 0 , 0

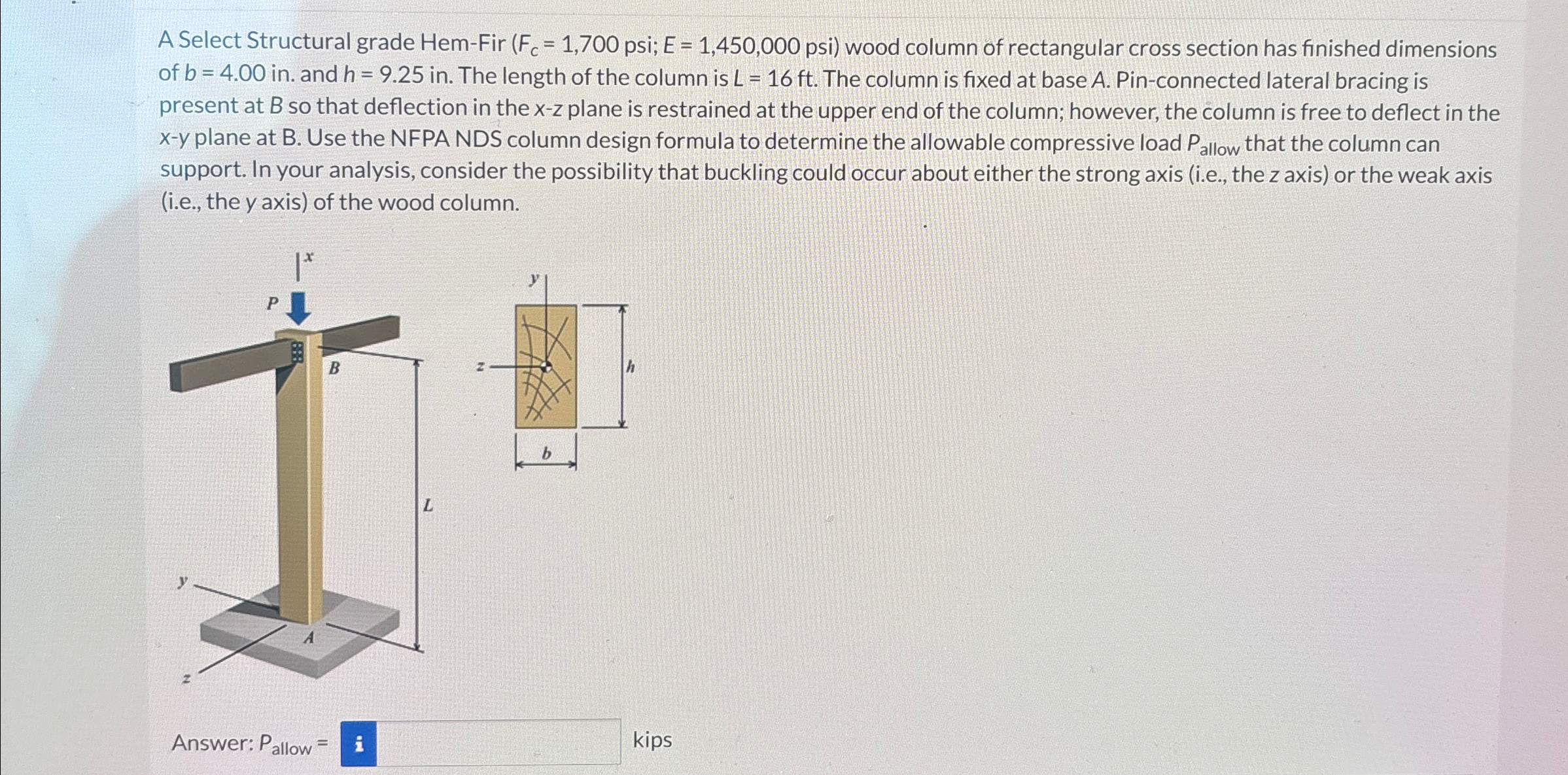

A Select Structural grade Hem-Fir (Fc=1,700E=1,450,000) wood column of rectangular cross section has finished dimensions of b=4.00in. and h=9.25in. The length of the column is L=16ft. The column is fixed at base A. Pin-connected lateral bracing is present at B so that deflection in the x-z plane is restrained at the upper end of the column; however, the column is free to deflect in the x-y plane at B. Use the NFPA NDS column design formula to determine the allowable compressive load Pallow that the column can support. In your analysis, consider the possibility that buckling could occur about either the strong axis (i.e., the z axis) or the weak axis (i.e., the y axis) of the wood column.
Answer: Pallow= kips
A Select Structural grade Hem - Fir ( F c = 1 , 7
