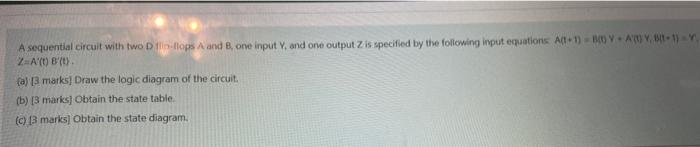

A sequential circuit with two D flip-flops A and B, one input Y, and one output Z is specified by the following input equations: A(t+ 1) = B(t) Y + A'(t) Y, B(t+ 1) = Y*,

question

Z=A'(t) B'(t) .

1. [3 marks] Draw the logic diagram of the circuit.
2. [3 marks] Obtain the state table.
3. [3 marks] Obtain the state diagram.

Z=A(t)B(t). (a) [3 marks] Draw the logic diagram of the circuit. (b) [3 marks] Obtain the state table. (c) 3 marks) Obtain the state diagram
