Question: A sequential circuit with two D flip-flops A and B, two inputs, x and y; and one output z is specified by the following next-state

A sequential circuit with two D flip-flops A and B, two

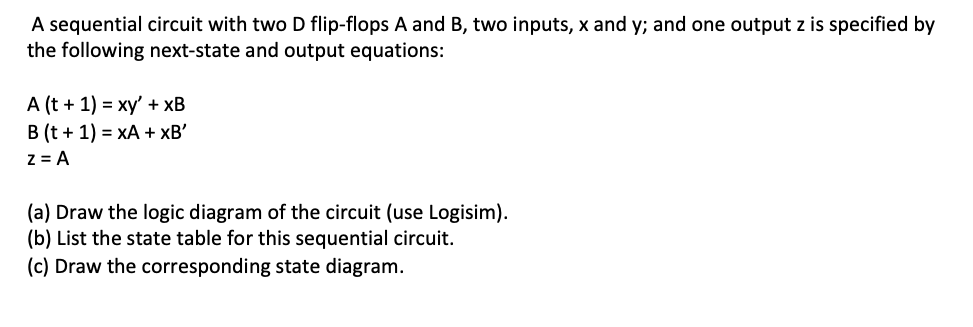

A sequential circuit with two D flip-flops A and B, two inputs, x and y; and one output z is specified by the following next-state and output equations: A(t + 1)-xy, + XB B(t1)xA + xB' (a) Draw the logic diagram of the circuit (use Logisim) (b) List the state table for this sequential circuit. (c) Draw the corresponding state diagram

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
