Question: A simple circular curve connects two straights ( A B & B C ) intersected at point B , Station 2 + 0 0 0

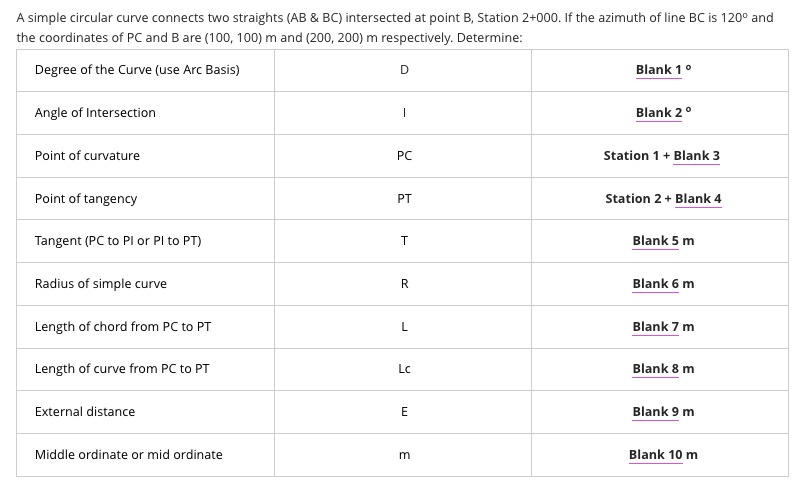

A simple circular curve connects two straights (AB & BC) intersected at point B, Station 2+000. If the azimuth of line BC is 120 and the coordinates of PC and B are (100,100)m and (200,200)m respectively.
A simple circular curve connects two straights (

Step by Step Solution

There are 3 Steps involved in it
