Question: A simple, concise, and very clear solution. It's a test, please explain the steps CP4.10 Consider the closed-loop system is depicted in Figure CP4.10. The

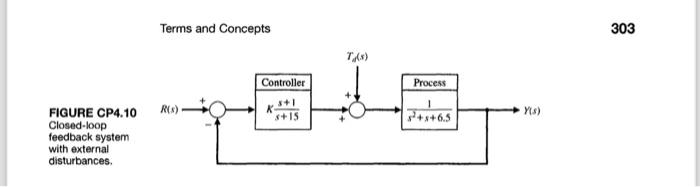

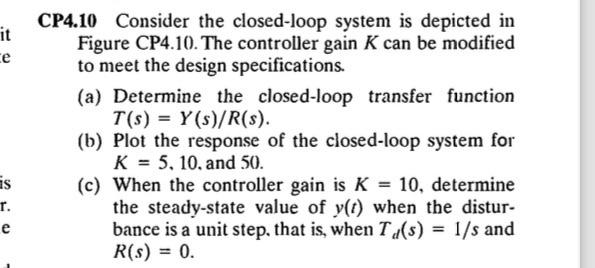

CP4.10 Consider the closed-loop system is depicted in Figure CP4.10. The controller gain K can be modified to meet the design specifications. (a) Determine the closed-loop transfer function T(s)=Y(s)/R(s). (b) Plot the response of the closed-loop system for K=5,10, and 50 . (c) When the controller gain is K=10, determine the steady-state value of y(t) when the disturbance is a unit step, that is, when Td(s)=1/s and R(s)=0. Terms and Concepts FIGURE CP4.10 Closed-loop feedback system with external disturbances
Step by Step Solution
There are 3 Steps involved in it
Get step-by-step solutions from verified subject matter experts
