Question: | A simple mechanical system is shown in the figure below. The parameters are ( k = ) spring constant, ( b

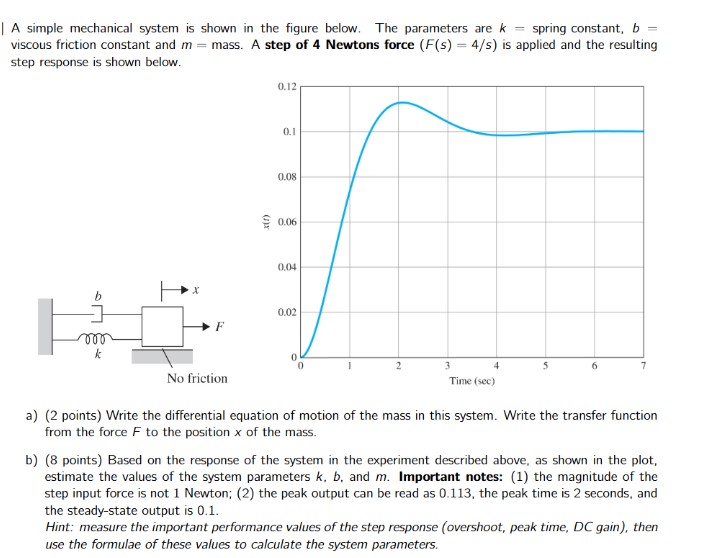

| A simple mechanical system is shown in the figure below. The parameters are \( k=\) spring constant, \( b=\) viscous friction constant and \( m=\) mass. A step of 4 Newtons force \((F(s)=4/ s)\) is applied and the resulting step response is shown below.
a)(2 points) Write the differential equation of motion of the mass in this system. Write the transfer function from the force \( F \) to the position \( x \) of the mass.
b)(8 points) Based on the response of the system in the experiment described above, as shown in the plot, estimate the values of the system parameters \( k, b \), and \( m \). Important notes: (1) the magnitude of the step input force is not 1 Newton; (2) the peak output can be read as 0.113, the peak time is 2 seconds, and the steady-state output is 0.1.
Hint: measure the important performance values of the step response (overshoot, peak time, DC gain), then use the formulae of these values to calculate the system parameters.
| A simple mechanical system is shown in the
