Question: A simply supported beam is a single - reinforced rectangular beam ( Fig . 2 ) with a span of 7 m , a beam

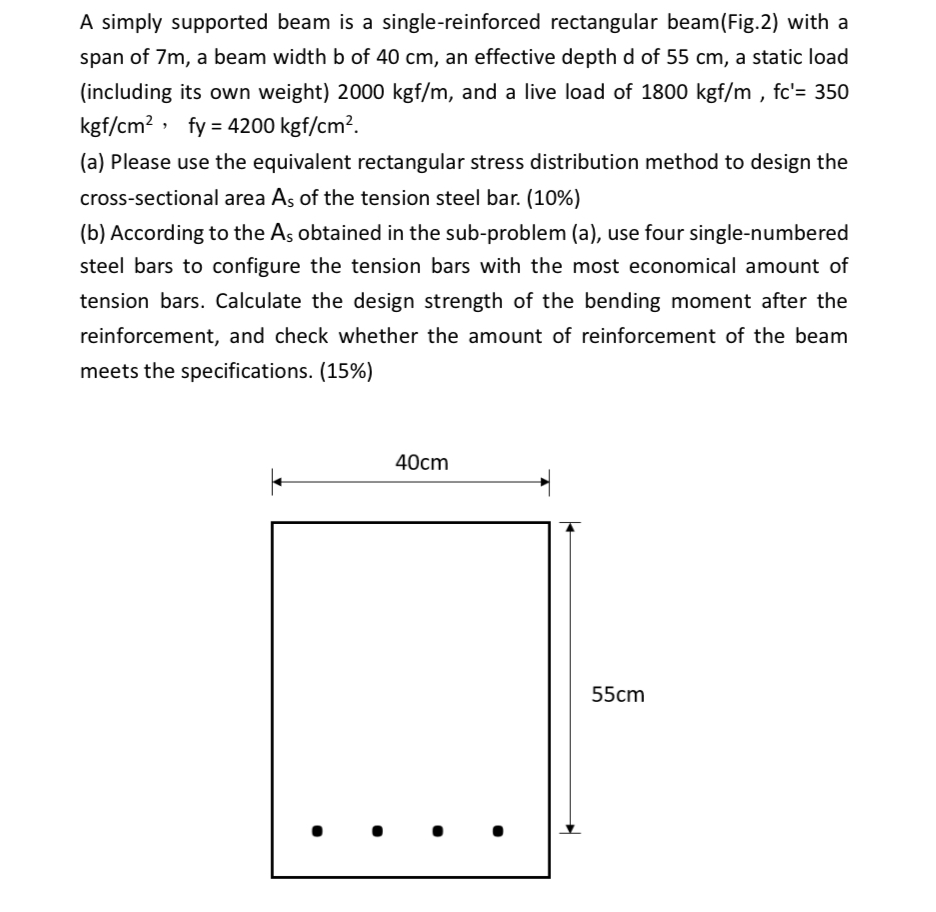

A simply supported beam is a single-reinforced rectangular beam(Fig.2) with a span of 7 m , a beam width b of 40 cm , an effective depth d of 55 cm , a static load (including its own weight)2000kgfm, and a live load of 1800kgfm,fc=350kgfcm2, fy =4200kgfcm2.
(a) Please use the equivalent rectangular stress distribution method to design the cross-sectional area As of the tension steel bar. (10%)
(b) According to the As obtained in the sub-problem (a), use four single-numbered steel bars to configure the tension bars with the most economical amount of tension bars. Calculate the design strength of the bending moment after the reinforcement, and check whether the amount of reinforcement of the beam meets the specifications. (15%)
A simply supported beam is a single - reinforced

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
