Question: A simply supported beam without lateral support is shown in the accompanying figure, The beam has a span of 8 m and is loaded at

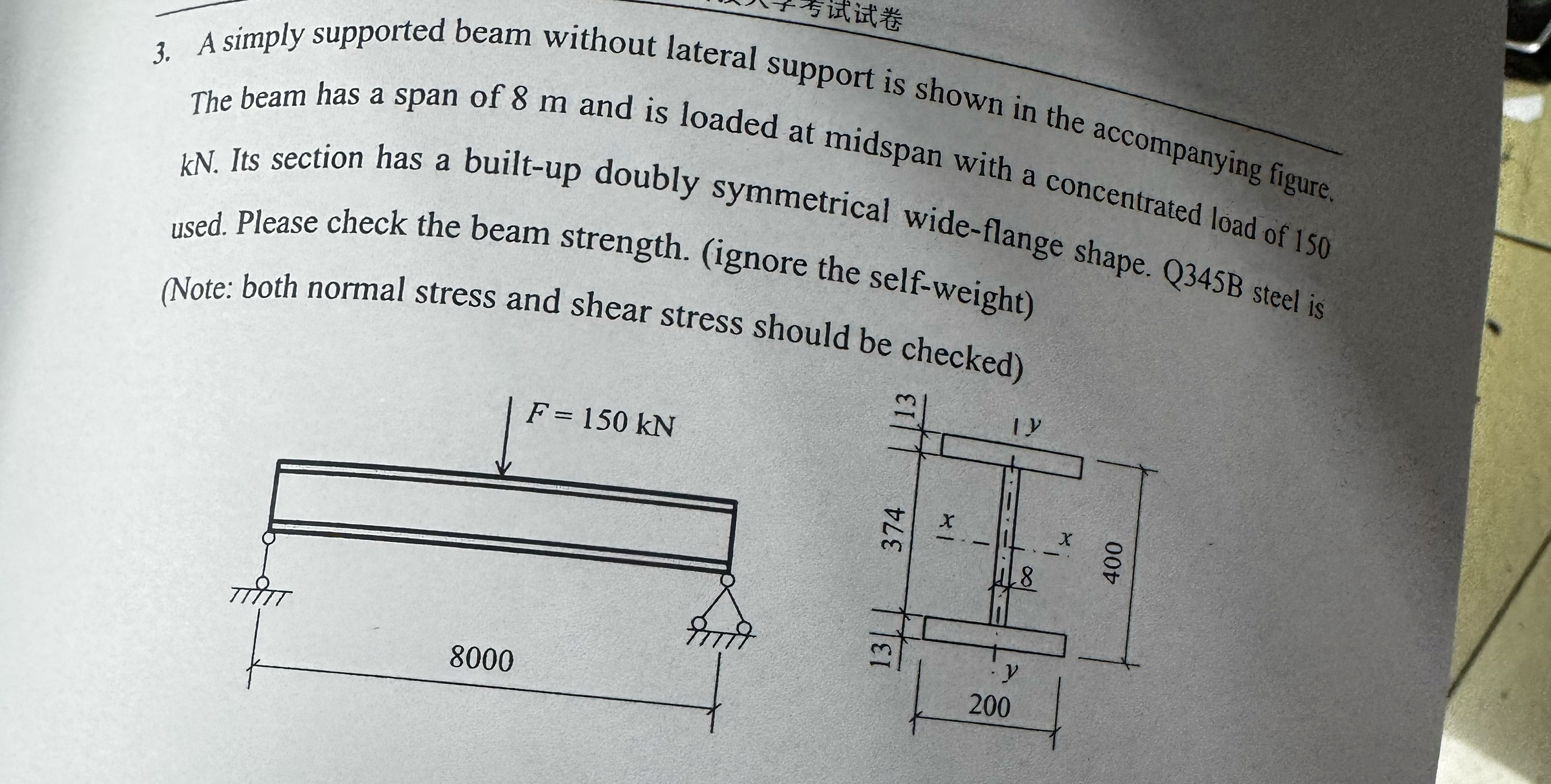

A simply supported beam without lateral support is shown in the accompanying figure, The beam has a span of 8 m and is loaded at midspan with a concentrated load of 150 kN . Its section has a built-up doubly symmetrical wide-flange shape. Q345B steel is used. Please check the beam strength. (ignore the self-weight)
(Note: both normal stress and shear stress should be checked)
A simply supported beam without lateral support

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
