Question: A single force P acts at C in a direction perpendicular to the handle B C of the crank shown. Determine the moment M x

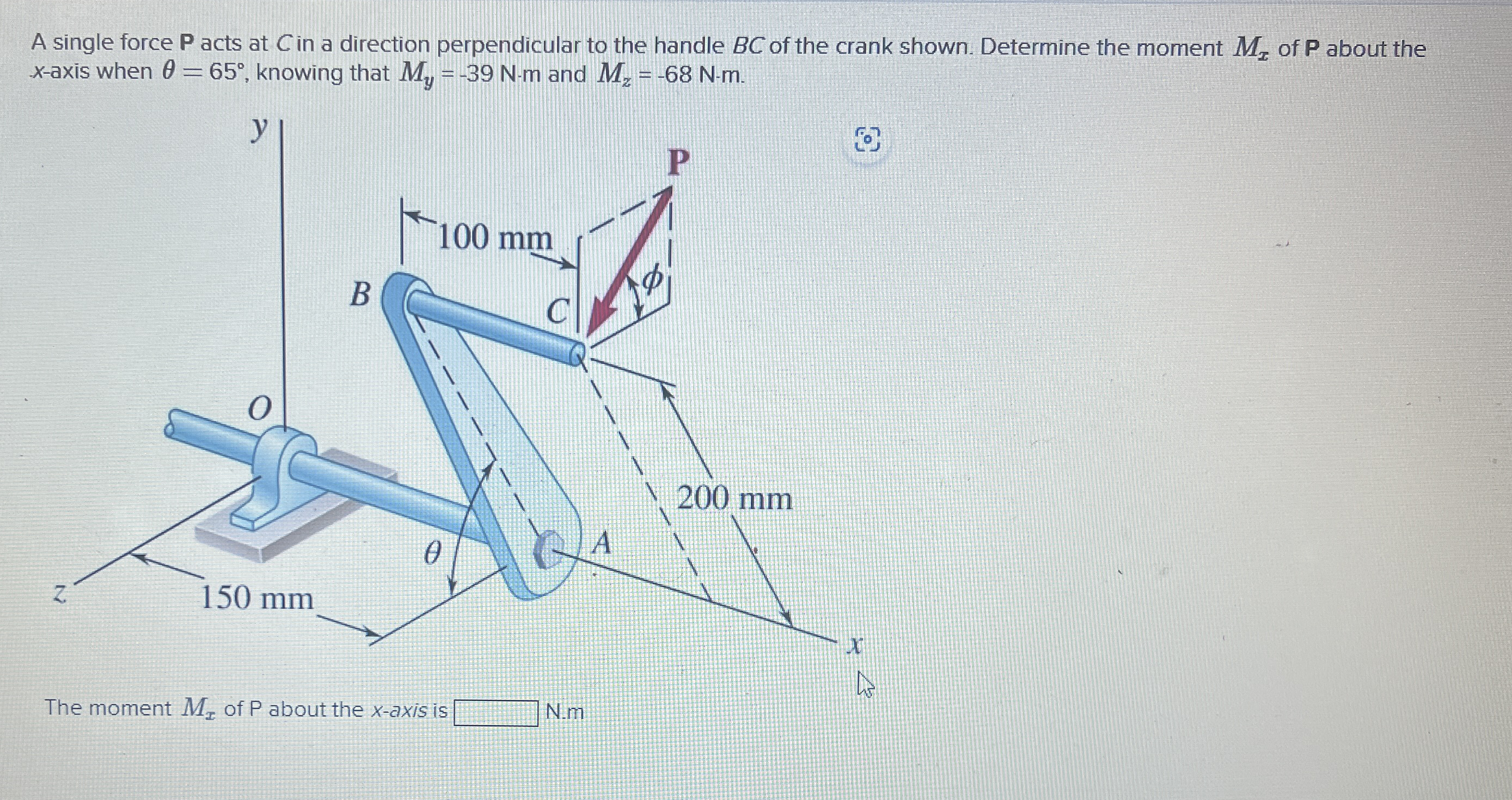

A single force P acts at C in a direction perpendicular to the handle BC of the crank shown. Determine the moment Mx of P about the
x-axis when =65, knowing that My=-39N-m and Mz=-68N-m.
The moment Mx of P about the x-axis is
N.m
A single force P acts at C in a direction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
