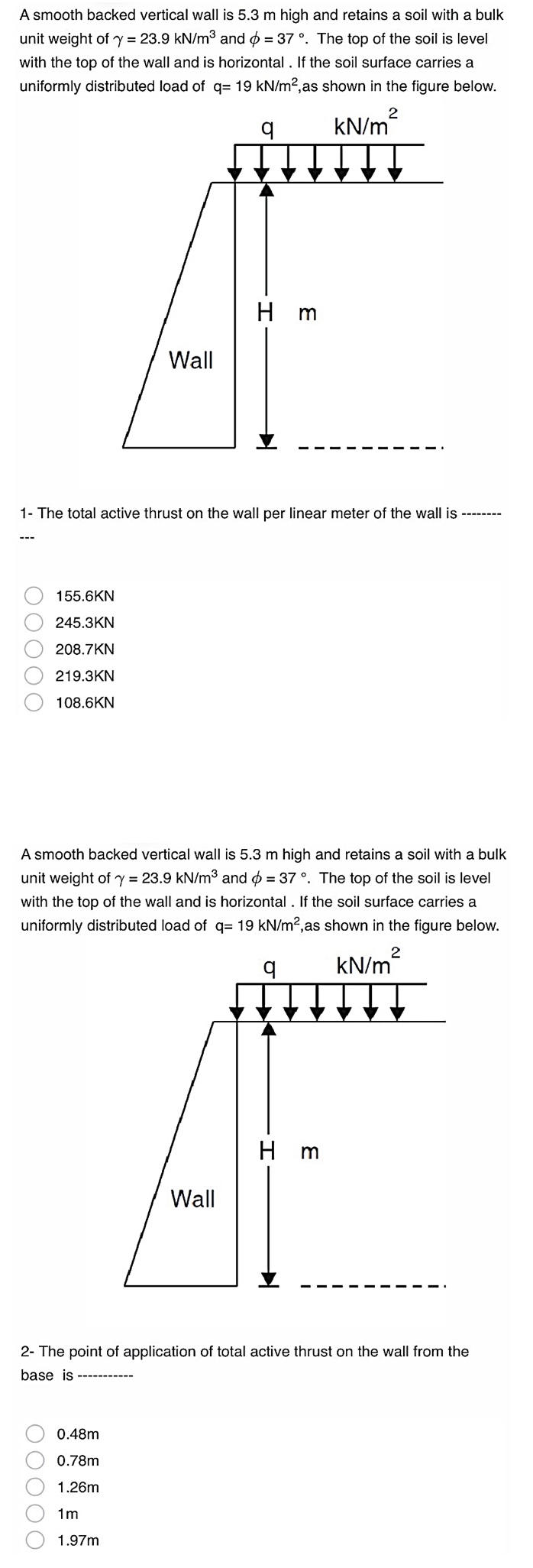

A smooth backed vertical wall is $5\mathrm{.}3m$ high and retains a soil with a bulk

unit weight of $=23\mathrm{.}9k\frac{N}{m^3}$ and $=37.$ The top of the soil is level

with the top of the wall and is horizontal $.$ If the soil surface carries a

uniformly distributed load of $q=19k\frac{N}{m^2},$ as shown in the figure below.

$1-$ The total active thrust on the wall per linear meter of the wall is

$155\mathrm{.}6$KN

$245\mathrm{.}3$KN

$208\mathrm{.}7$KN

$219\mathrm{.}3$KN

$108\mathrm{.}6KN$

A smooth backed vertical wall is $5\mathrm{.}3m$ high and retains a soil with a bulk

unit weight of $=23\mathrm{.}9k\frac{N}{m^3}$ and $=37.$ The top of the soil is level

with the top of the wall and is horizontal $.$ If the soil surface carries a

uniformly distributed load of $q=19k\frac{N}{m^2},$ as shown in the figure below.

$2-$ The point of application of total active thrust on the wall from the

base is

$0\mathrm{.}48m$

$0\mathrm{.}78m$

$1\mathrm{.}26m$

$1m$

$1\mathrm{.}97m$
