Question: A solid circular bar ABCD with fixed supports is acted upon by torque T B and T C . The diameter of the bar d

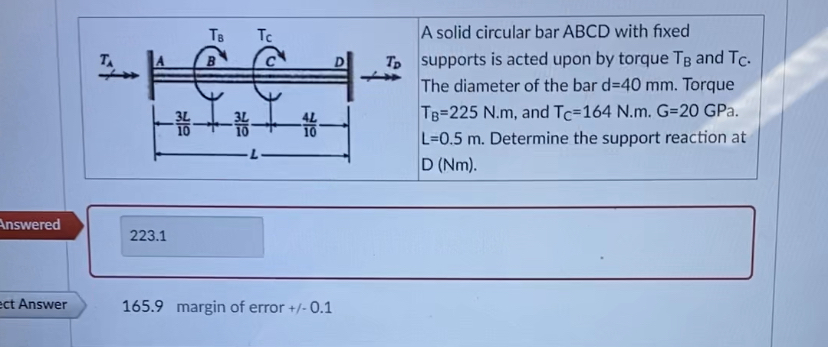

A solid circular bar ABCD with fixed supports is acted upon by torque TB and TC. The diameter of the bar d=40mm. Torque TB=225 N.m. and TC=164 N.m. G=20 GPa. L=0.5m. Determine the support reaction at D(Nm).
Answered
165.9 margin of error +-0.1
A solid circular bar ABCD with fixed supports is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
