Question: A sphere (mass = 10 kg) is supported by ropes inside a box (mass = 20 kg). The box slides on an inclined plane (k

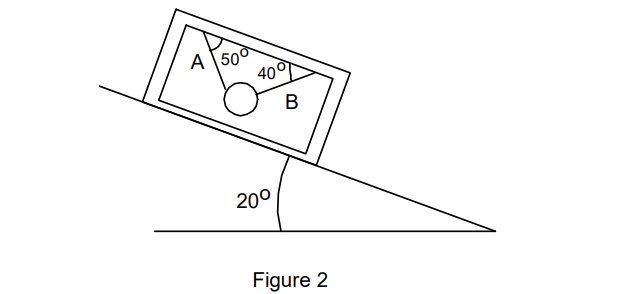

A sphere (mass = 10 kg) is supported by ropes inside a box (mass = 20 kg). The box slides on an inclined plane (k = 0.10), and the sphere has no movement relative to the box (Figure 2).

a) Draw the FBD (free body diagram) and the acceleration diagram;

b) Calculate the tension in cables A and B.

A sphere (mass = 10 kg) is supported by ropes inside a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
