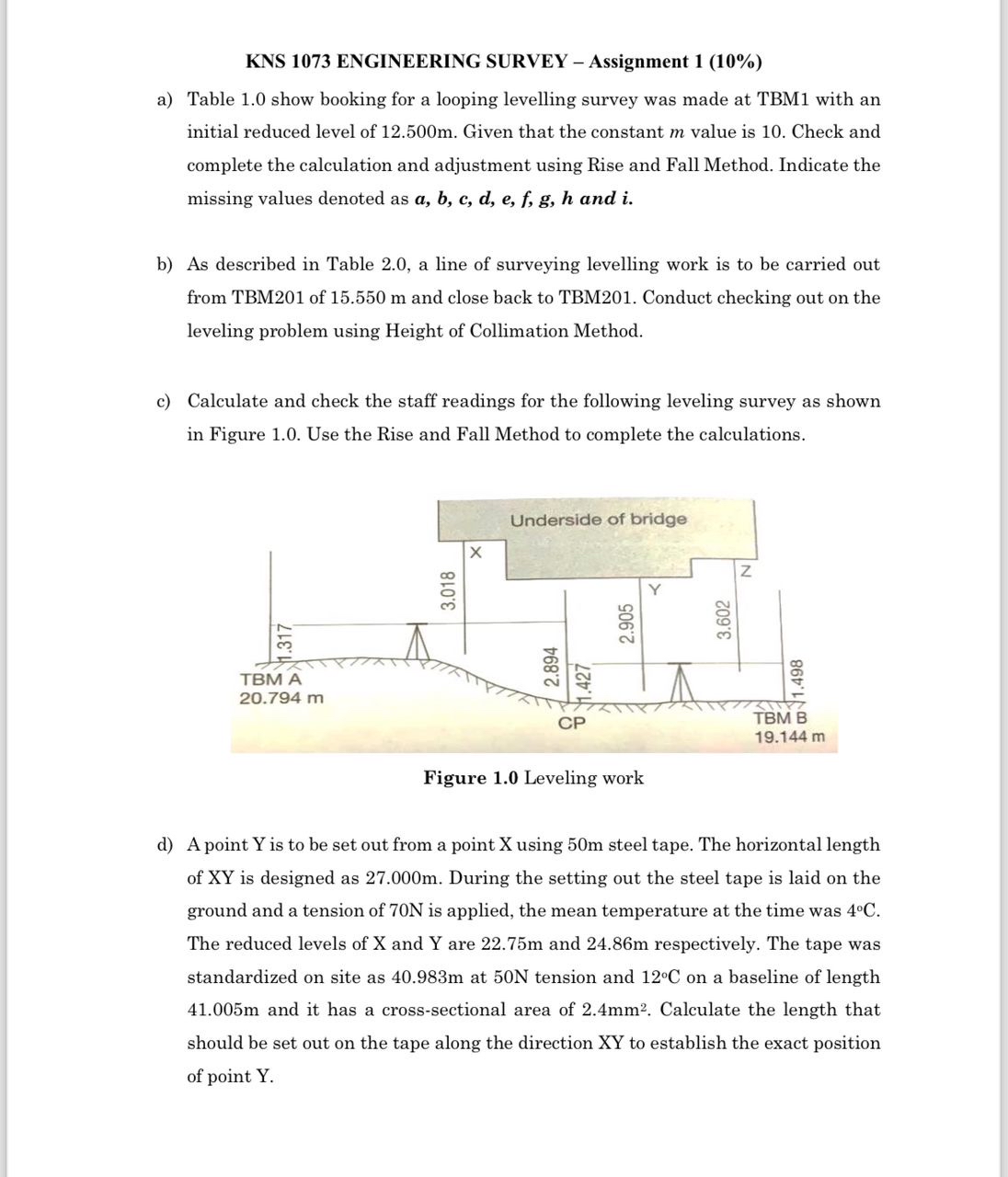

Question: a ) Table 1 . 0 show booking for a looping levelling survey was made at TBM 1 with an initial reduced level of 1

a) Table 1.0 show booking for a looping levelling survey was made at TBM1 with an initial reduced level of 12.500m. Given that the constant m value is 10. Check and complete the calculation and adjustment using Rise and Fall Method. Indicate the missing values denoted as a,b,c,d,e,f,g,h and i.
b) As described in Table 2.0, a line of surveying levelling work is to be carried out from TBM201 of 15.550m and close back to TBM201. Conduct checking out on the leveling problem using Height of Collimation Method.
c) Calculate and check the staff readings for the following leveling survey as shown in Figure 1.0. Use the Rise and Fall Method to complete the calculations.
Figure 1.0 Leveling work
d) A point Y is to be set out from a point x using 50m steel tape. The horizontal length of xY is designed as 27.000m. During the setting out the steel tape is laid on the ground and a tension of 70N is applied, the mean temperature at the time was 4C. The reduced levels of x and Y are 22.75m and 24.86m respectively. The tape was standardized on site as 40.983m at 50N tension and 12C on a baseline of length 41.005m and it has a cross-sectional area of 2.4mm2. Calculate the length that should be set out on the tape along the direction XY to establish the exact position of point Y.
