Question: A) The second order multistate separation process has the following transfer function: G(s)=(5s+1)(s+2)10 (i) Determine the poles of the transfer function. (ii) Determine the gain

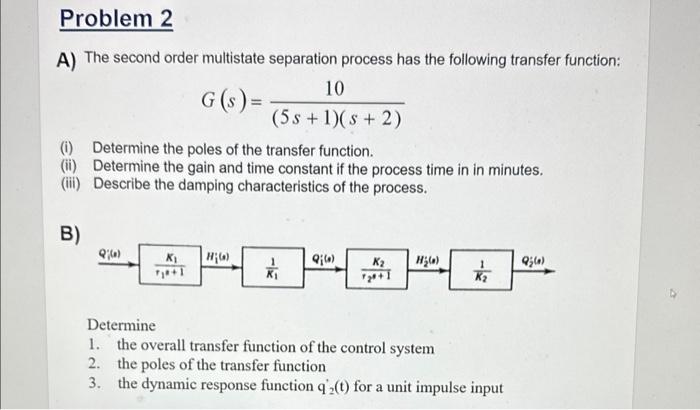

A) The second order multistate separation process has the following transfer function: G(s)=(5s+1)(s+2)10 (i) Determine the poles of the transfer function. (ii) Determine the gain and time constant if the process time in in minutes. (iii) Describe the damping characteristics of the process. B) Determine 1. the overall transfer function of the control system 2. the poles of the transfer function 3. the dynamic response function q2(t) for a unit impulse input
