Question: a ) The switch in the circuit in Fig. P 7 . 5 2 has been in position a for a long time. At

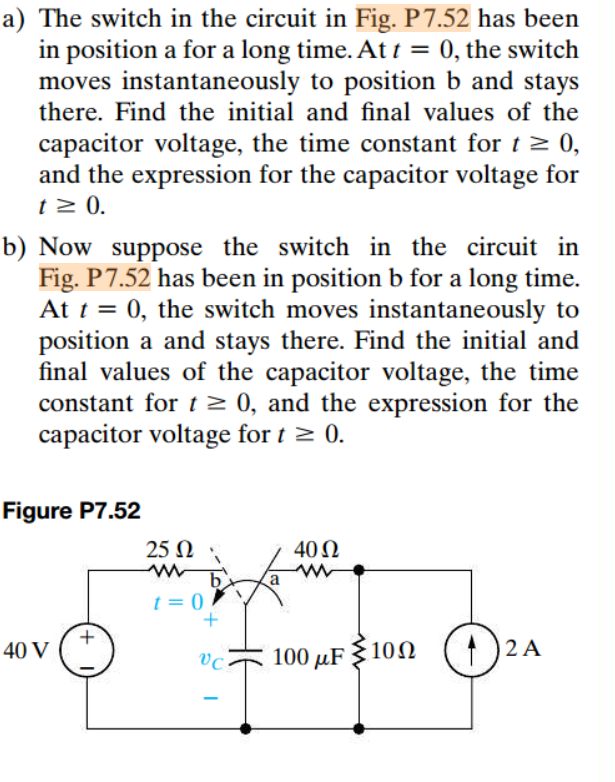

a) The switch in the circuit in Fig. P7.52 has been in position a for a long time. At \( t=0\), the switch moves instantaneously to position b and stays there. Find the initial and final values of the capacitor voltage, the time constant for \( t \geq 0\), and the expression for the capacitor voltage for \( t \geq 0\).
b) Now suppose the switch in the circuit in Fig. P7.52 has been in position b for a long time. At \( t=0\), the switch moves instantaneously to position a and stays there. Find the initial and final values of the capacitor voltage, the time constant for \( t \geq 0\), and the expression for the capacitor voltage for \( t \geq 0\).
Figure P7.52
a ) The switch in the circuit in Fig. P 7 . 5 2
