Question: A thin 1 . 2 m wide, right - angle gate with negligible mass is free to pivot about a frictionless hinge at point O

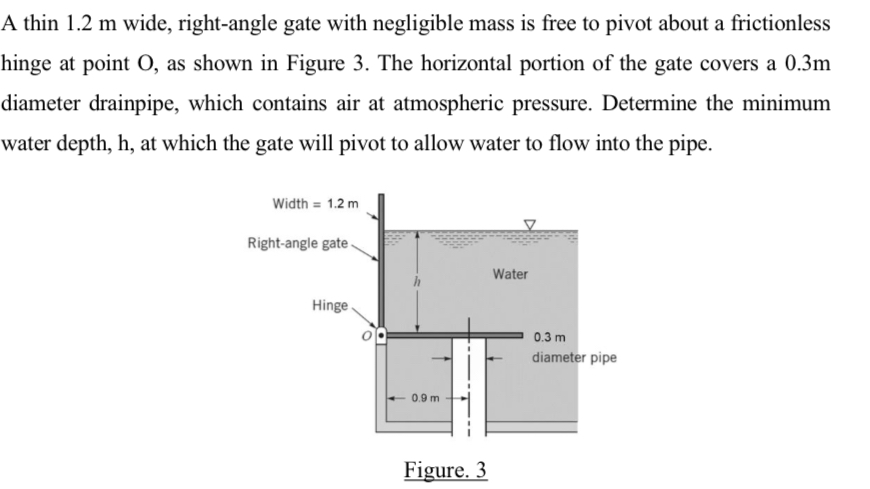

A thin 1.2 m wide, right-angle gate with negligible mass is free to pivot about a frictionless hinge at point O , as shown in Figure 3. The horizontal portion of the gate covers a 0.3 m diameter drainpipe, which contains air at atmospheric pressure. Determine the minimum water depth, h , at which the gate will pivot to allow water to flow into the pipe.
