Question: A thin rectangular plate section of an airplane is uniformly deformed as shown below. ( We will learn how to measure strains later in the

A

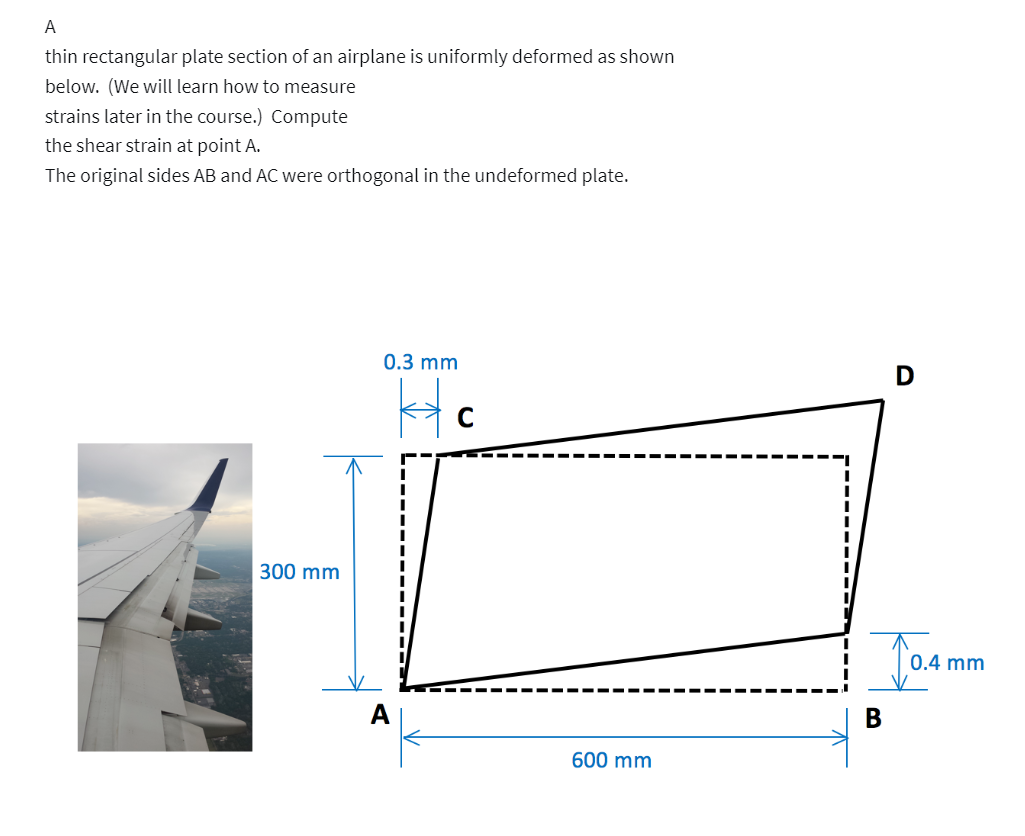

thin rectangular plate section of an airplane is uniformly deformed as shown
below. (We will learn how to measure
strains later in the course.) Compute
the shear strain at point A.
The original sides AB and AC were orthogonal in the undeformed plate.
A thin rectangular plate section of an airplane

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
