Question: A thin rectangular polymer plate PQRS of width b = 4 0 4 m m and height a = 2 0 8 m m is

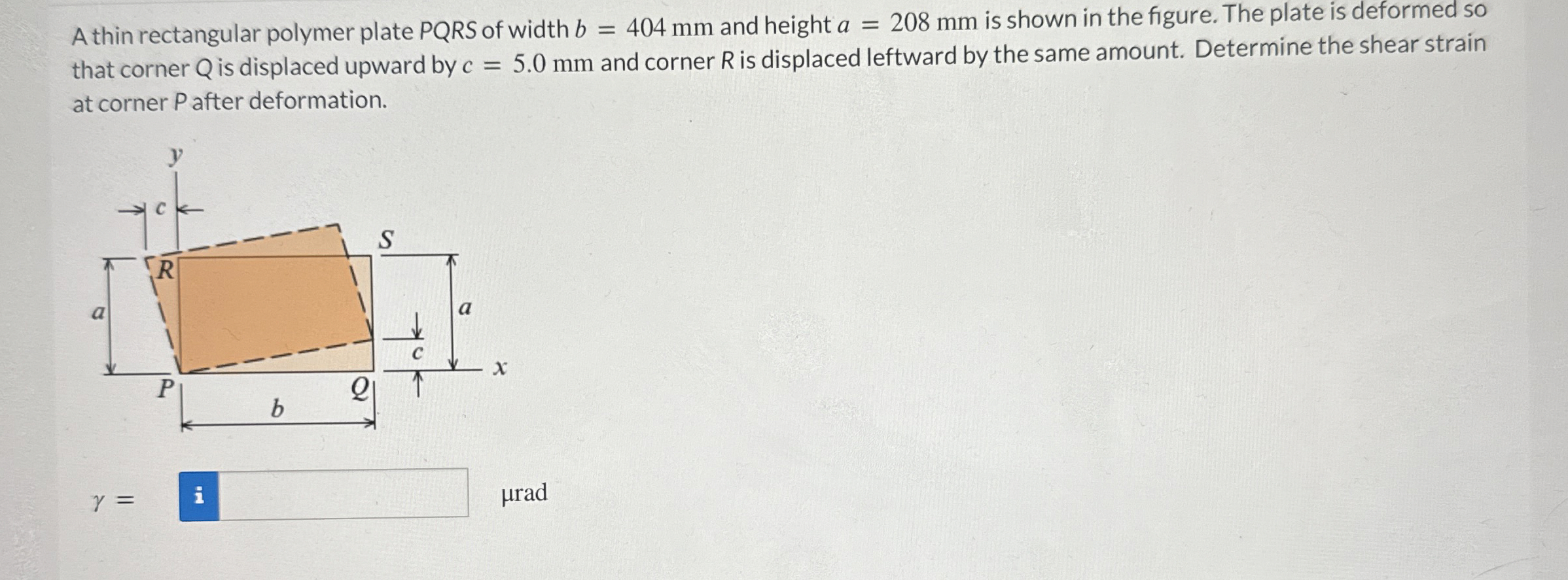

A thin rectangular polymer plate PQRS of width b=404mm and height a=208mm is shown in the figure. The plate is deformed so that corner Q is displaced upward by c=5.0mm and corner R is displaced leftward by the same amount. Determine the shear strain at corner P after deformation.
=
rad
A thin rectangular polymer plate PQRS of width b

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
