Question: A thin - walled beam has the cross - section shown in the figure. If the beam is subjected to a bending moment M x

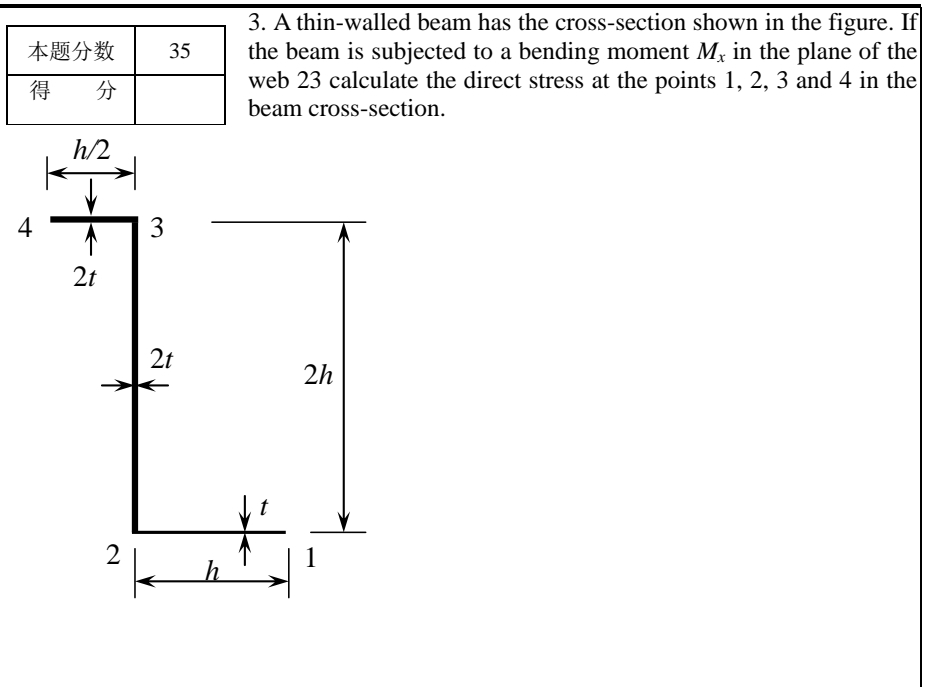

A thin-walled beam has the cross-section shown in the figure. If the beam is subjected to a bending moment Mx in the plane of the web 23 calculate the direct stress at the points 1,2,3 and 4 in the beam cross-section.
A thin - walled beam has the cross - section

Step by Step Solution

There are 3 Steps involved in it
