Question: A thin - walled beam has the cross - section shown in figure. If the beam is subjected to a bending moment Mx in the

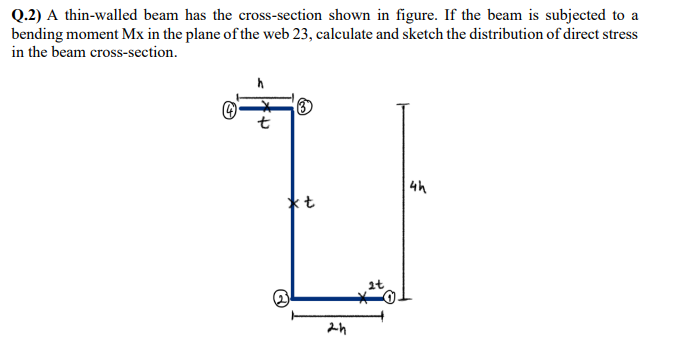

A thin-walled beam has the cross-section shown in figure. If the beam is subjected to a bending moment Mx in the plane of the web 23, calculate and sketch the distribution of direct stress in the beam cross-section.
A thin - walled beam has the cross - section

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
