Question: A timber beam of rectangular section is simply supported at the ends and carries a point load at the centre of the beam. The length

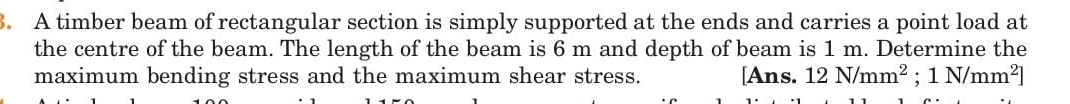

A timber beam of rectangular section is simply supported at the ends and carries a point load at the centre of the beam. The length of the beam is 6 m and depth of beam is 1 m . Determine the maximum bending stress and the maximum shear stress.
[Ans.12Nmm2;1Nmm2]
A timber beam of rectangular section is simply

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
