Question: A torque T is applied at the free end ( point A ) to the 2 0 mm diameter steel rod. The rod is 1

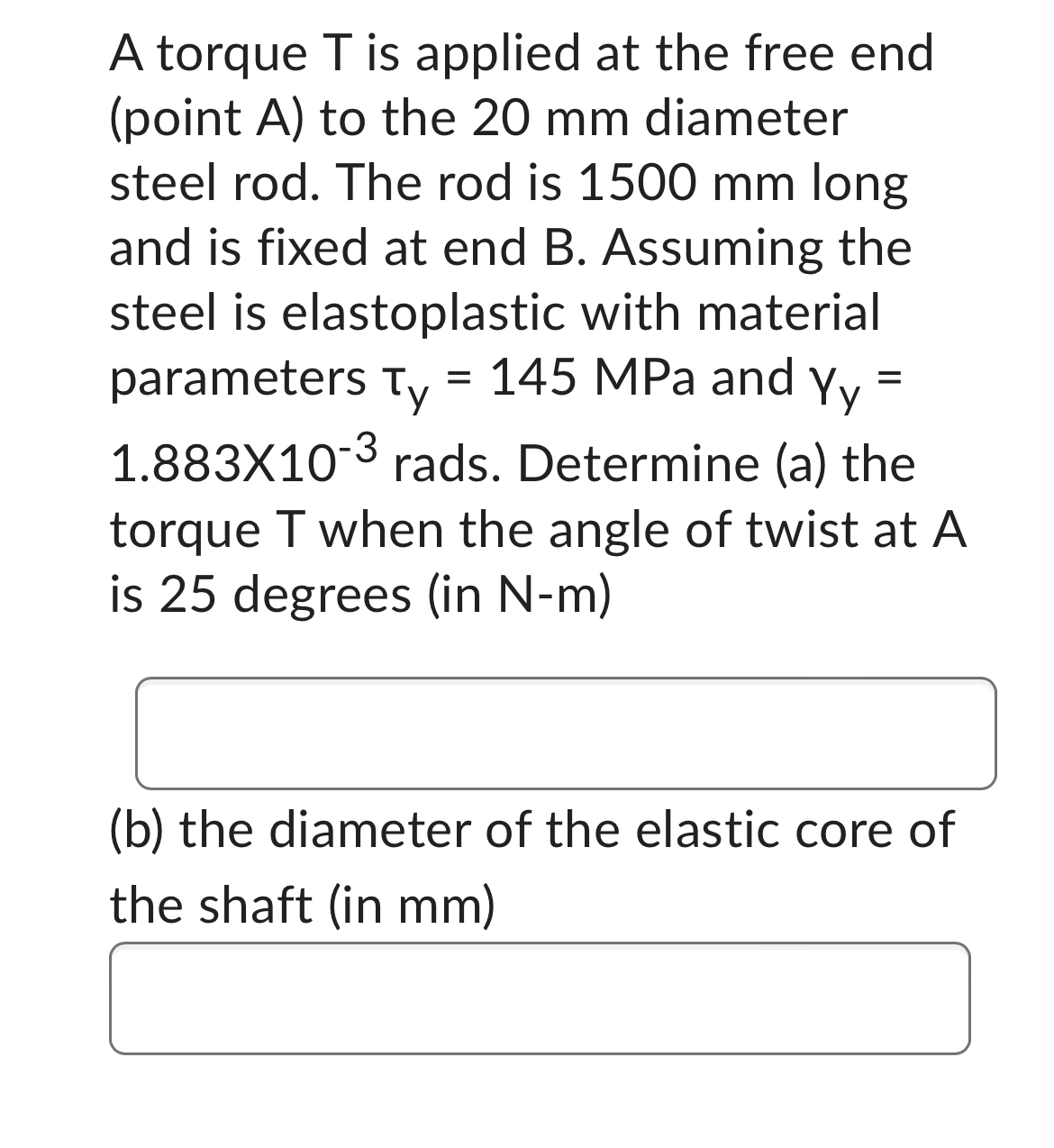

A torque T is applied at the free end (point A) to the 20 mm diameter steel rod. The rod is 1500 mm long and is fixed at end B. Assuming the steel is elastoplastic with material parameters y=145MPa and y=1.88310-3 rads. Determine (a) the torque T when the angle of twist at A is 25 degrees (in N-m)
(b) the diameter of the elastic core of the shaft (in mm)
A torque T is applied at the free end ( point A )
