Question: A triangular highway gutter ( Figure below ) is designed to carry a discharge of 5 2 m 3 m i n on a channel

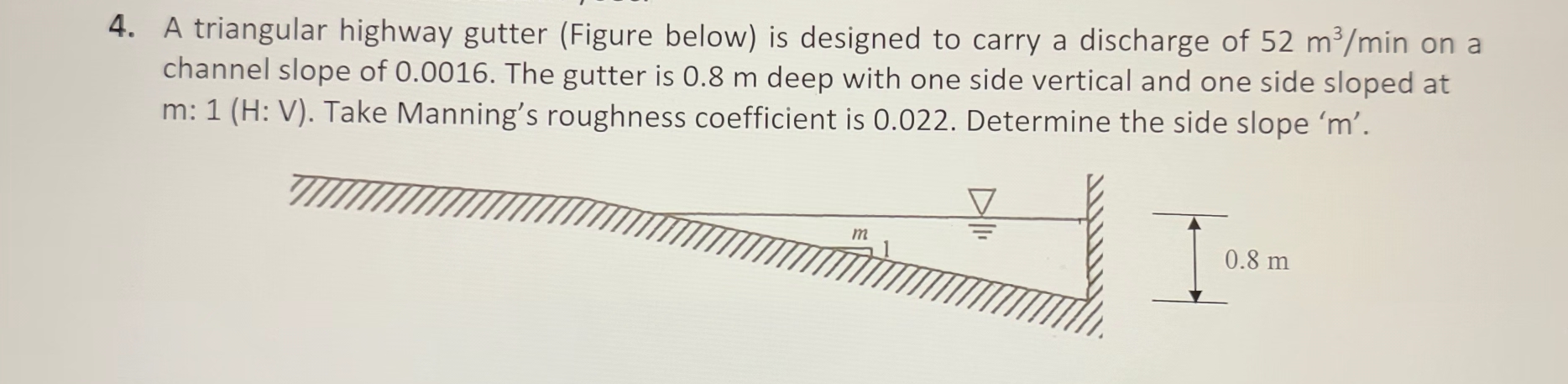

A triangular highway gutter (Figure below) is designed to carry a discharge of 52m3min on a channel slope of 0.0016. The gutter is 0.8 m deep with one side vertical and one side sloped at m:1(H:V). Take Manning's roughness coefficient is 0.022. Determine the side slope 'm'.
