Question: A triangular shaped gate is hinged at point A , as shown. Knowing that the weight of the gate is 6 0 0 N m

A triangular shaped gate is hinged at point A, as shown. Knowing that the weight of the gate is 600Nm, determine the force
needed to keep the gate at its position per unit width. The line of action of the weight of the gate is denoted by the dashed line.
Take the density of water to be 1000kgm3. The height h of the gate is 2 m . In the given figure the thickness of the gate is not
considered. The force needed to keep the gate at its position per unit width is 18,919Nm. Find length g[m] :

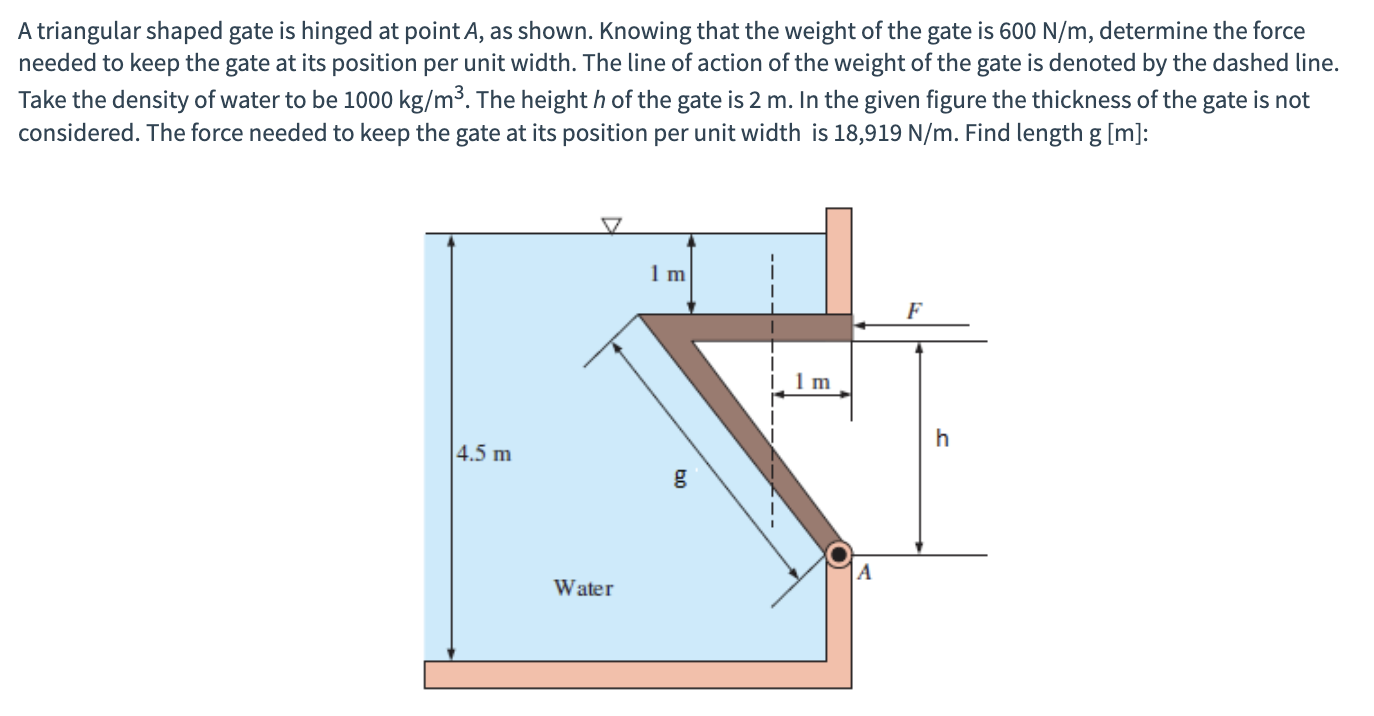

A triangular shaped gate is hinged at point A ,
