Question: A typical T - section resulting from a monolithic construction of the slab and its supporting beams, Effective flange width, bf = 1 , 0

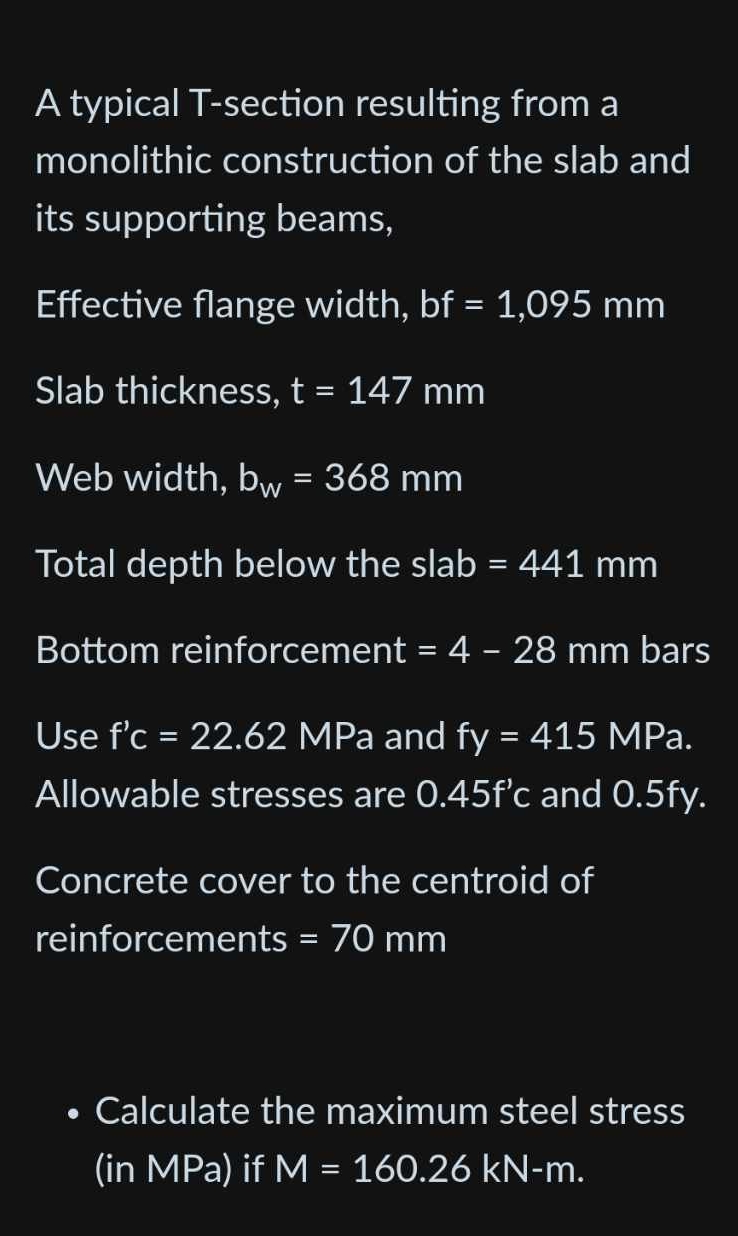

A typical T-section resulting from a monolithic construction of the slab and its supporting beams,
Effective flange width, bf =1,095mm
Slab thickness, t=147mm
Web width, bw=368mm
Total depth below the slab =441mm
Bottom reinforcement =4-28mm bars
Use f'c=22.62MPa and fy=415MPa.
Allowable stresses are 0.45f'c and 0.5fy.
Concrete cover to the centroid of reinforcements =70mm
Calculate the maximum steel stress (in MPa ) if M=160.26kN-m.
A typical T - section resulting from a monolithic

Step by Step Solution

There are 3 Steps involved in it
