Question: A uniform circular solid rod, without notches, has two 9 0 bends and supports a constant force of 8 kN , as shown in the

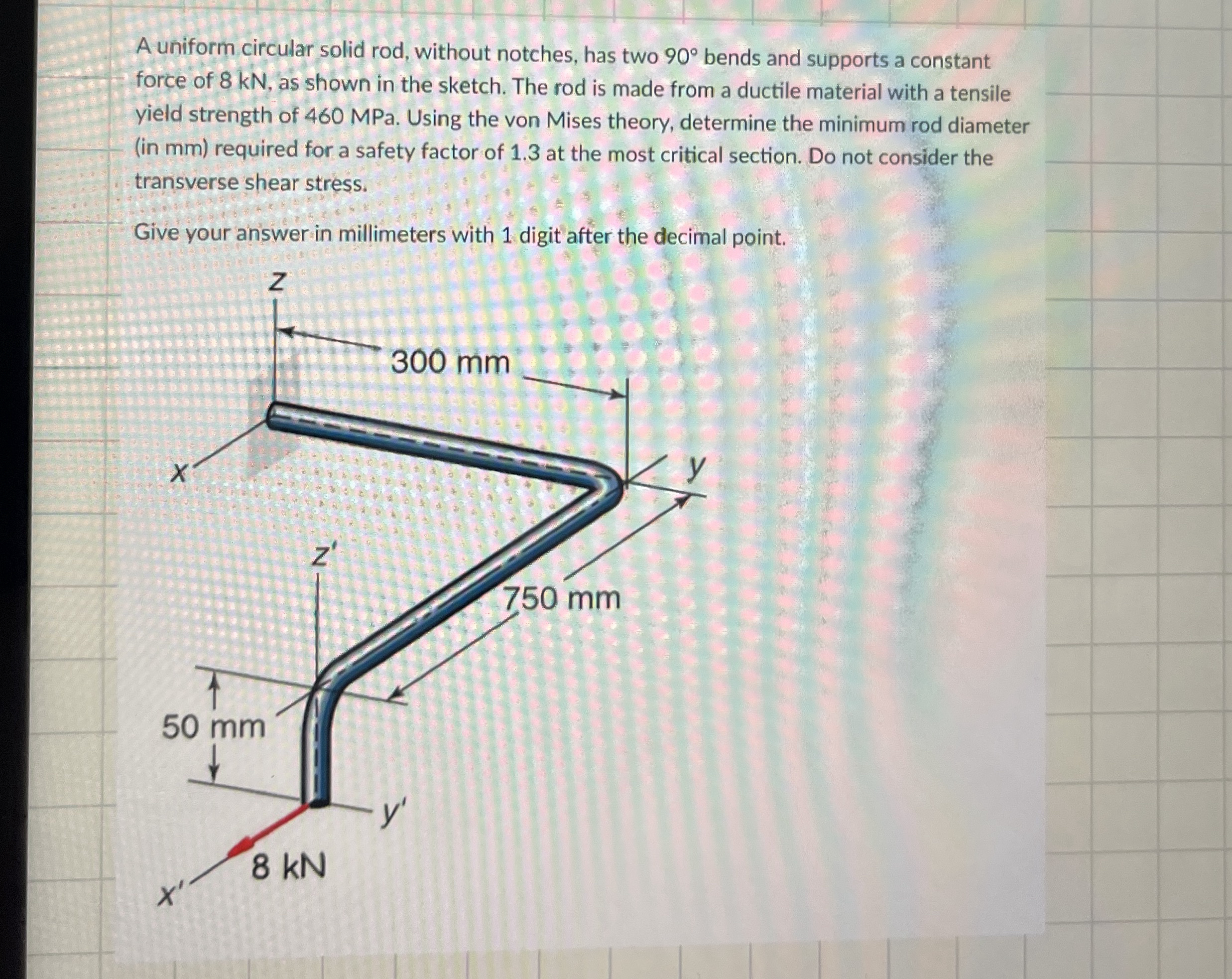

A uniform circular solid rod, without notches, has two 90 bends and supports a constant force of 8 kN , as shown in the sketch. The rod is made from a ductile material with a tensile yield strength of 460 MPa . Using the von Mises theory, determine the minimum rod diameter (in mm ) required for a safety factor of 1.3 at the most critical section. Do not consider the transverse shear stress.
Give your answer in millimeters with 1 digit after the decimal point.
