Question: A unity feedback system has the loop transfer function L ( s ) = G c ( s ) G ( s ) = G

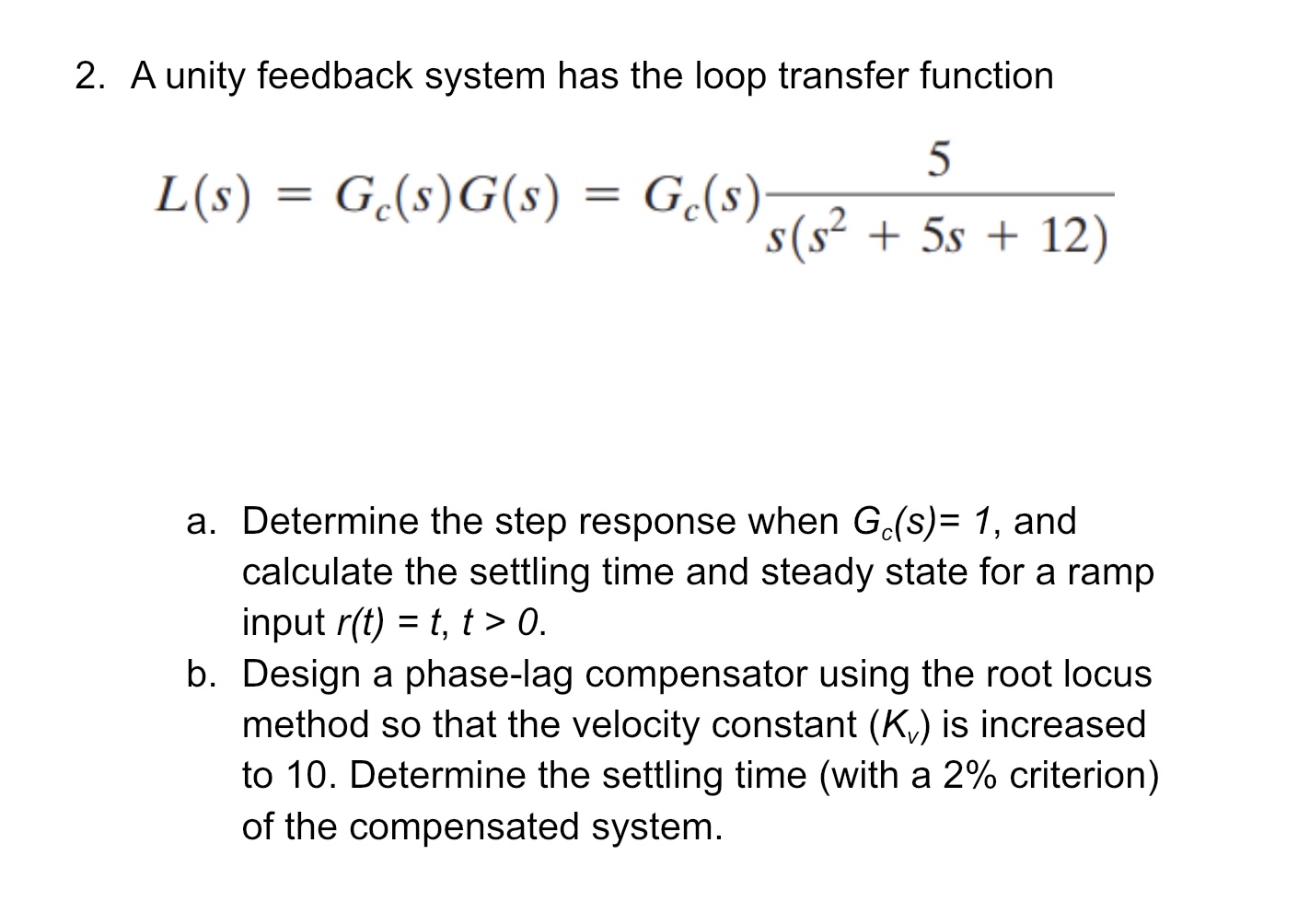

A unity feedback system has the loop transfer function
L(s)=Gc(s)G(s)=Gc(s)5s(s2+5s+12)
a. Determine the step response when Gc(s)=1, and calculate the settling time and steady state for a ramp input r(t)=t,t>0.
b. Design a phase-lag compensator using the root locus method so that the velocity constant (Kv) is increased to 10. Determine the settling time (with a 2% criterion) of the compensated system.
A unity feedback system has the loop transfer

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
