Question: A ) Using the superposition method, calculate the current i in the figure. What power is delivered to the 3 ohm resistor. What power is

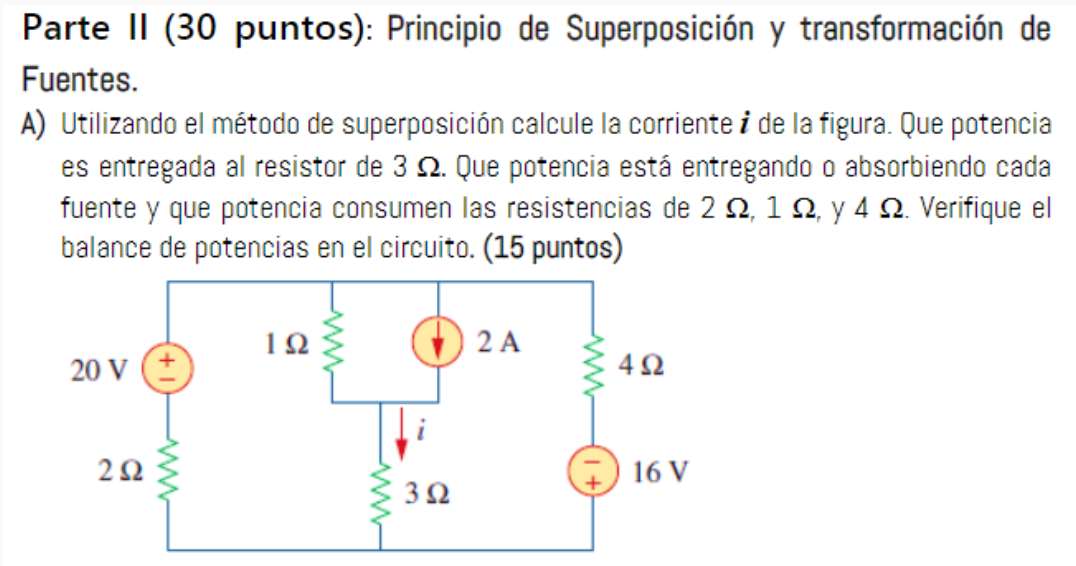

A) Using the superposition method, calculate the current i in the figure. What power is delivered to the 3 ohm resistor. What power is delivering or absorbing each source and what power are consumed by the 2 ohm, 1 ohm and 4 ohm resistors. Check the power balance in the circuit. (15 points). For sure i1(20V source)=2.5 A i2(16V source)=-1A and i3(2ASource)=3/8A . Im Having problem in calculating the power of each resister and same for the sources.
