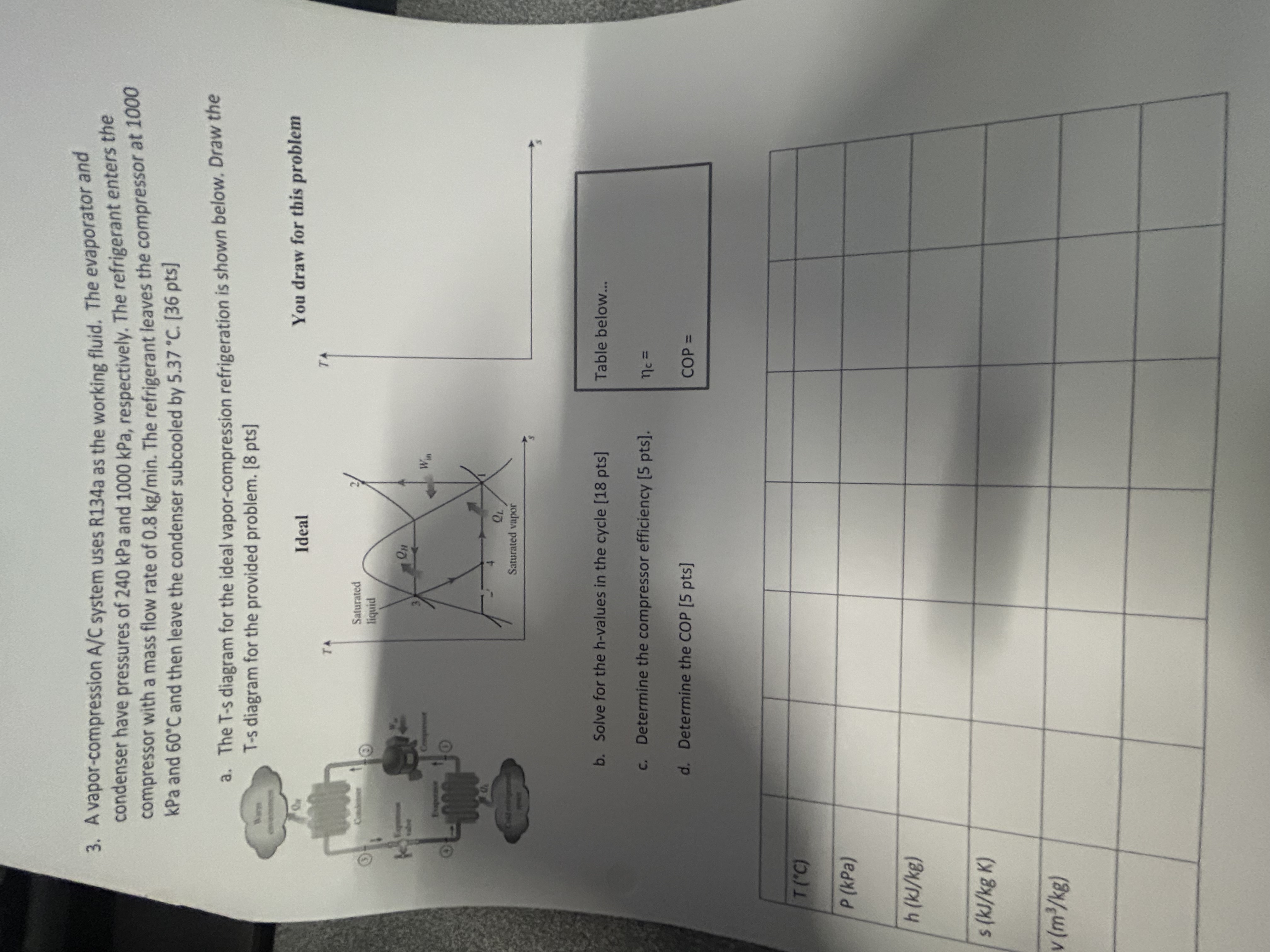

A vapor$-$compression A$/$C system uses R$134$a as the working fluid. The evaporator and condenser have pressures of $240$ kPa and $1000$ kPa $,$ respectively. The refrigerant enters the compressor with a mass flow rate of $0\mathrm{.}8k\frac{g}{m}in.$ The refrigerant leaves the compressor at $1000$ kPa and $60C$ and then leave the condenser subcooled by $5\mathrm{.}37C.[36$ pts$]$

a$.$ The T$-$s diagram for the ideal vapor$-$compression refrigeration is shown below. Draw the T$-$s diagram for the provided problem. $[8$ pts$]$

Ideal

You draw for this problem

b$.$ Solve for the h$-$values in the cycle $[18$ pts$]$

c$.$ Determine the compressor efficiency $[5$ pts$].$

d$.$ Determine the COP $[5$ pts$]$
