Question: A vertical, rectangular gate with water on one side is shown in Figure 3 . 1 . Determine the total resultant force acting on the

A vertical, rectangular gate with water on one side is shown in Figure 3.1. Determine the total resultant force acting on the gate and the location of the centre of pressure.

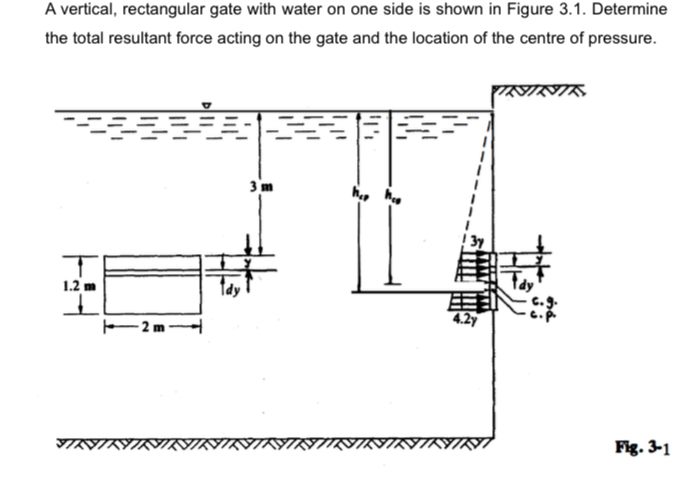

Fig. 3-1
A vertical, rectangular gate with water on one

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
