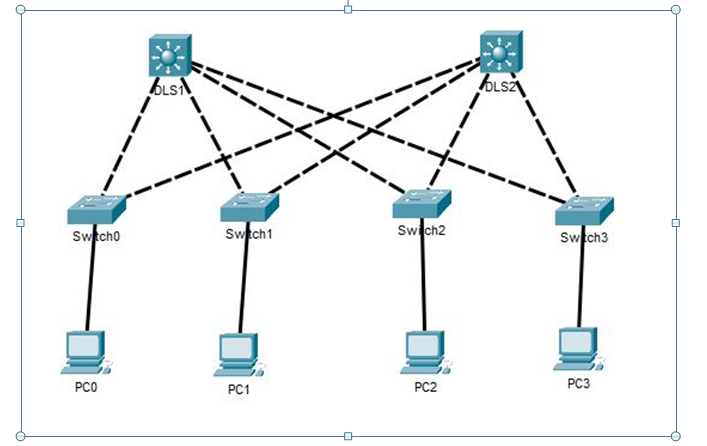

A Virtual LAN (VLAN) is a logical subnetwork that can group together a collection of devices from different physical LANs. In the following Cisco switched network, you need to create 3 VLANs and associate switchports to each VLAN and enable trunking. Answer the following questions regarding the given network.

1. Identify the Access and Trunk ports in the topology and explain what Native VLAN is and how it can be configured in the given network. (5 Marks)

2. You have been asked to create 50 VLANs on the given switch. You have decided to use VLAN Trunking Protocol (VTP) to enable the exchange of VLAN information between switches automatically. Explain what needs to be configured in the given network to have a secure VTP. You need to provide the necessary commands for VTP configuration.

3. You have been asked to secure the network so an attacking host on a VLAN cannot gain access to traffic on other VLANs. Discuss in detail how attacker can send traffic from one VLAN to another and provide solutions to mitigate such attack.

bust Alsa 1 +- Switcho Switch1 Swich2 Sw.ch3 PCO PC1 PC2 PC3
