Question: a) Which direction (clockwise or counterclockwise) does conventional current travel through the wire in the figure to the right? Explain. b) At which point (a

1. You have a circuit consisting of four 4.5 V D-cell batteries

a) Which direction (clockwise or counterclockwise) does conventional current travel through the wire in the figure to the right? Explain.

b) At which point (a or b) will an electron feel more electric potential? Explain.

c) At which point (a or b) will an electron have more electric potential energy? Explain.

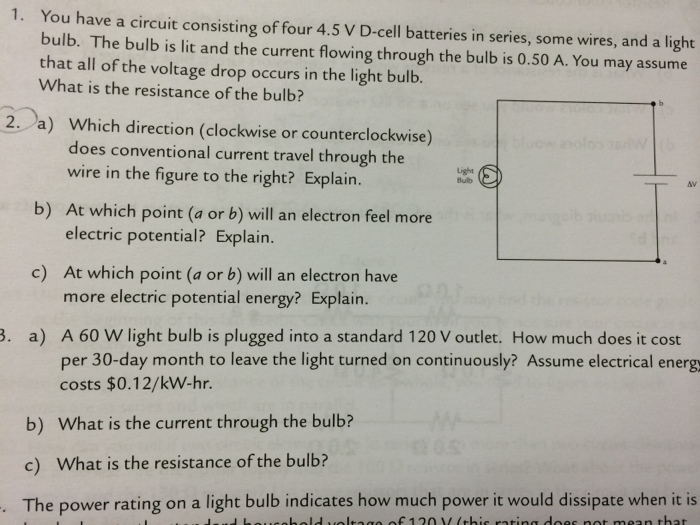

1. You have a circuit consisting of four 4.5 V D-cell batteries in series, some wires, and a light bulb. The bulb is lit and the current flowing through the bulb is 0.50 A. You may assume that all of the voltage drop occurs in the light bulb. What is the resistance of the bulb? 2. a) Which direction (clockwise or counterclockwise) does conventional current travel through the wire in the figure to the right? Explain. b) At which point (a or b) will an electron feel more electric potential? Explain. c) At which point (a or b) will an electron have more electric potential energy? Explain. Light Bulb AV 3. a) A 60 W light bulb is plugged into a standard 120 V outlet. How much does it cost per 30-day month to leave the light turned on continuously? Assume electrical energy costs $0.12/kW-hr. b) What is the current through the bulb? c) What is the resistance of the bulb? -. The power rating on a light bulb indicates how much power it would dissipate when it is usehold voltage of 120 V (this rating does not mean that

Step by Step Solution

★★★★★

3.48 Rating (158 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Conventional current will travel counterclockwise because current will always travel ... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
