Question: A wire with current i 5 61 A is shown in the figure Two semi infinite straight sections both tangent to the same circle with

A wire with current i 5 61 A is shown in

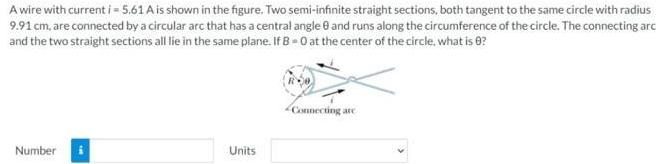

A wire with current i 5 61 A is shown in the figure Two semi infinite straight sections both tangent to the same circle with radius 9 91 cm are connected by a circular arc that has a central angle 8 and runs along the circumference of the circle The connecting arc and the two straight sections all lie in the same plane If B 0 at the center of the circle what is 0 Number Units Connecting are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
