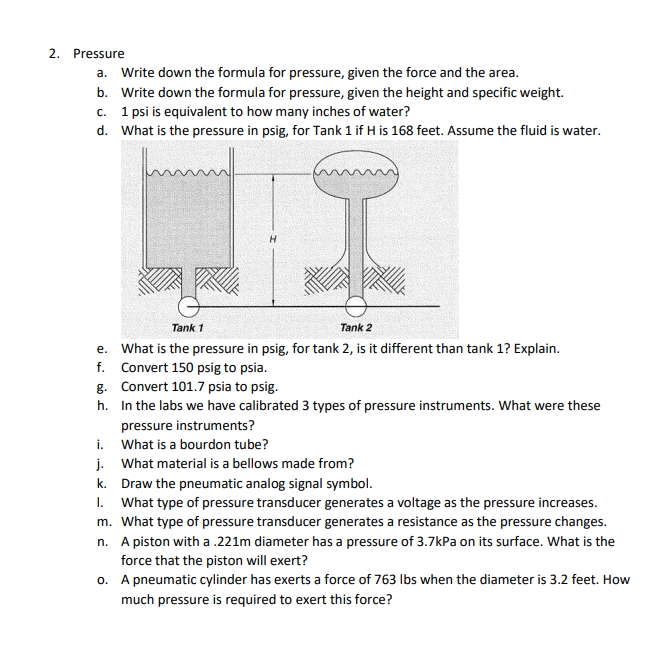

a$.$ Write down the formula for pressure, given the force and the area.

b$.$ Write down the formula for pressure, given the height and specific weight.

c$.1$ psi is equivalent to how many inches of water?

d$.$ What is the pressure in psig, for Tank $1$ if H is $168$ feet. Assume the fluid is water.

e$.$ What is the pressure in psig, tor tank $2,$ is it ditferent than tank $1?$ Explain.

f$.$ Convert $150$ psig to psia.

g$.$ Convert $101\mathrm{.}7$ psia to psig.

h$.$ In the labs we have calibrated $3$ types of pressure instruments. What were these pressure instruments?

i$.$ What is a bourdon tube?

j$.$ What material is a bellows made from?

k$.$ Draw the pneumatic analog signal symbol.

I. What type of pressure transducer generates a voltage as the pressure increases.

m $.$ What type of pressure transducer generates a resistance as the pressure changes.

n $.$ A piston with a $.221$ m diameter has a pressure of $3\mathrm{.}7$ kPa on its surface. What is the force that the piston will exert?

o$.$ A pneumatic cylinder has exerts a force of $763$ lbs when the diameter is $3\mathrm{.}2$ feet. How much pressure is required to exert this force?
