Question: A=13,B=9,C=4,D=16, E=6 You can submit your work either . . as a Word file, or an Excel file, or solve it on paper, take a

A=13,B=9,C=4,D=16, E=6

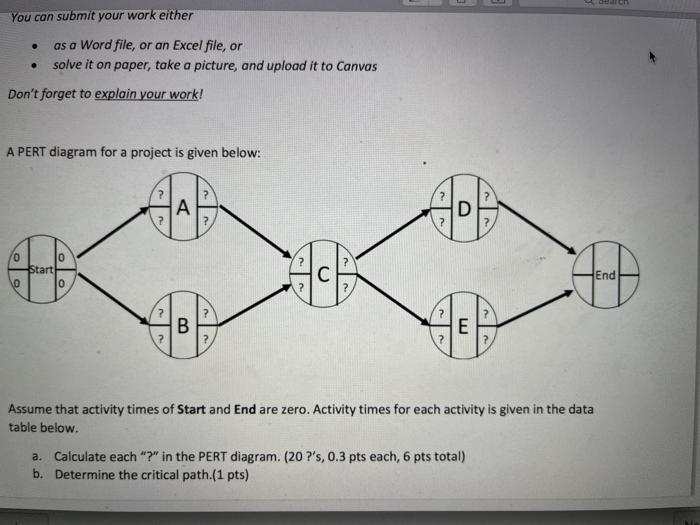

You can submit your work either . . as a Word file, or an Excel file, or solve it on paper, take a picture, and upload it to Canvas Don't forget to explain your work! A PERT diagram for a project is given below: ? ? D ? 0 0 Start 0 End ? ? B E ? Assume that activity times of Start and End are zero. Activity times for each activity is given in the data table below. a. Calculate each "?" in the PERT diagram. (20 ?'s, 0.3 pts each, 6 pts total) b. Determine the critical path.(1 pts)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
