(a)(4] Classify these items into 4 cost types according to the cost-of-quality model (P/A/VE).

(b)[3] What is the total of prevention costs?

(c)[3] What is the total of appraisal costs?

(d)[3] What is the total of internal failure costs?

e)(3] What is the total of external failure costs?

f)[4] Draw the corresponding Pareto diagram of costs based on results in (b) through (e).

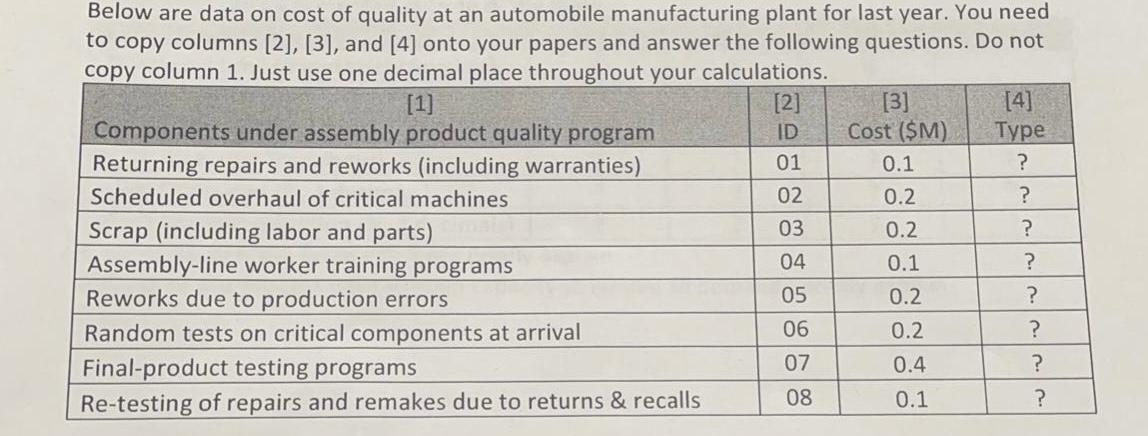

Below are data on cost of quality at an automobile manufacturing plant for last year. You need to copy columns [2], [3], and [4] onto your papers and answer the following questions. Do not copy column 1. Just use one decimal place throughout your calculations. [1] [2] [3] [4] Components under assembly product quality program ID Cost ($M) Type Returning repairs and reworks (including warranties) 01 0.1 ? Scheduled overhaul of critical machines 02 0.2 ? Scrap (including labor and parts) 03 0.2 ? Assembly-line worker training programs 04 0.1 ? Reworks due to production errors 05 0.2 ? Random tests on critical components at arrival 06 0.2 ? Final-product testing programs 07 0.4 ? Re-testing of repairs and remakes due to returns & recalls 08 0.1 ? ..n.non
