Question: A7: Rod AB has the angular motion which is shown in Figure 7. Using Graphical Method (with appropriate scale) or Analytical Method (with appropriate

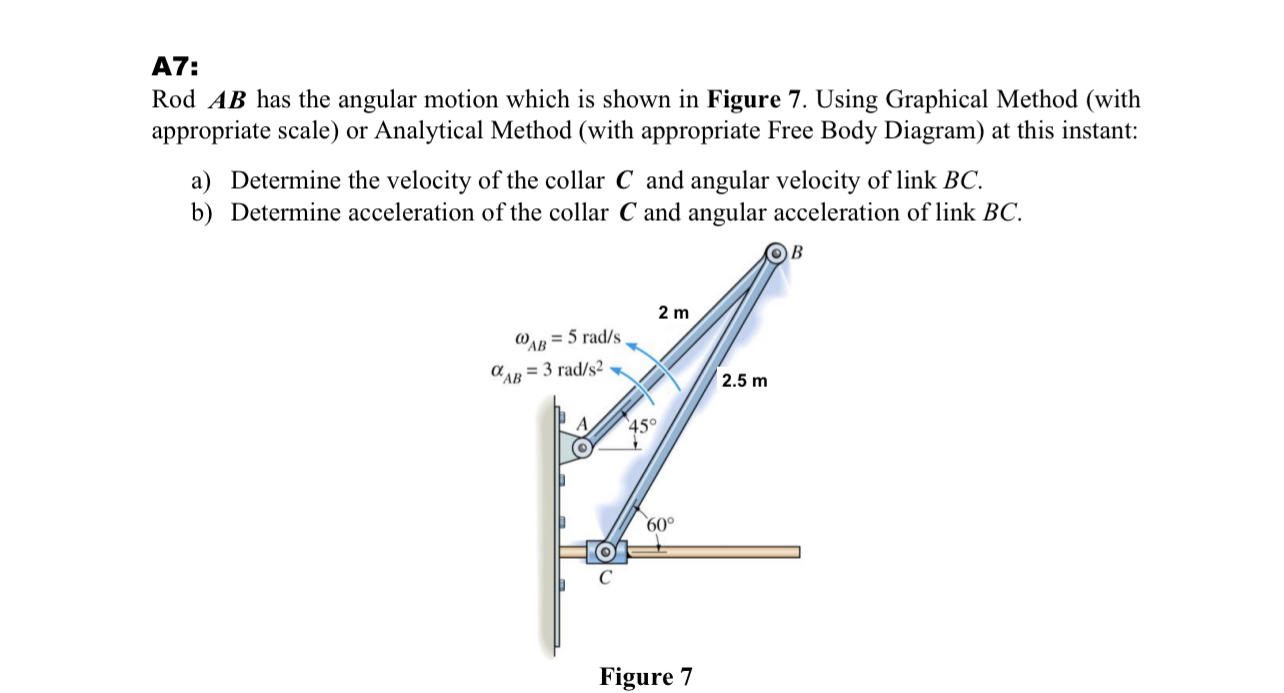

A7: Rod AB has the angular motion which is shown in Figure 7. Using Graphical Method (with appropriate scale) or Analytical Method (with appropriate Free Body Diagram) at this instant: a) Determine the velocity of the collar C and angular velocity of link BC. b) Determine acceleration of the collar C and angular acceleration of link BC. WAB = 5 rad/s AB = 3 rad/s2 2 m 45 60 Figure 7 2.5 m B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
