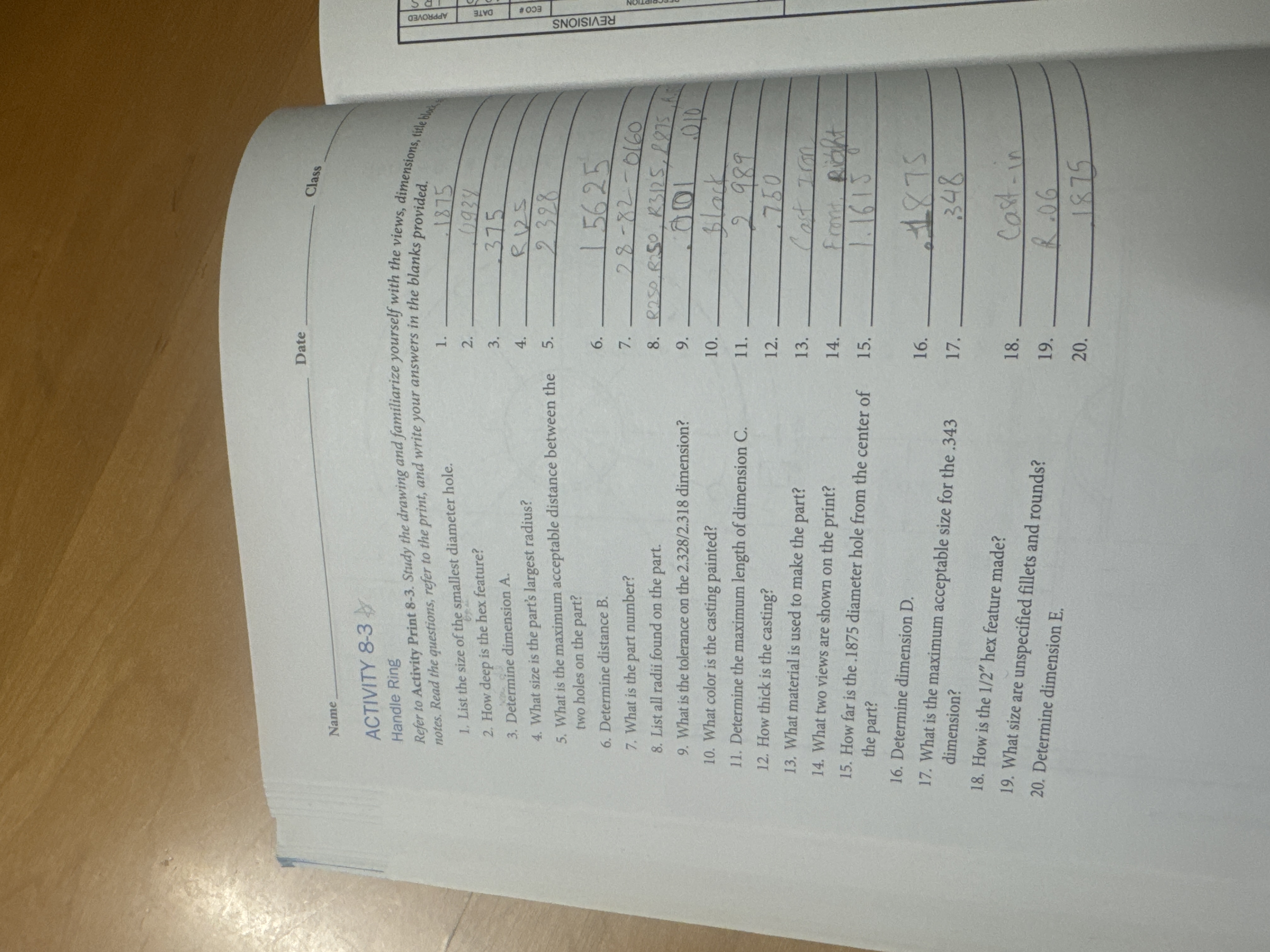

ACTIVITY $8-3$

Handle Ring

Refer to Activity Print $8-3.$ Study the drawing and familiarize yourself with the views, dimensions, title blong the print, and write your answers in the blanks provided.

List the size of the smallest diameter hole.

List the size deep is the hex feature?

Determine dimension $A.$

What size is the part's largest radius?

What is the maximum acceptable distance between the

two holes on the part?

Determine distance $B.$

What is the part number?

List all radii found on the part.

What is the tolerance on the $\frac{2\mathrm{.}328}{2\mathrm{.}318}$ dimension?

What color is the casting painted?

Determine the maximum length of dimension $C.$

How thick is the casting?

What material is used to make the part?

What two views are shown on the print?

How far is the $\mathrm{.}1875$ diameter hole from the center of

the part?

Determine dimension $D.$

What is the maximum acceptable size for the $\mathrm{.}343$

dimension?

How is the $\frac{1}{2^{\text{'}\text{'}}}$ hex feature made?

What size are unspecified fillets and rounds?

Determine dimension E $.$
