Question: Additional Problem 4 : The C - clamp shown below has been tightened until a force ( P and ( mathrm { P

Additional Problem 4:

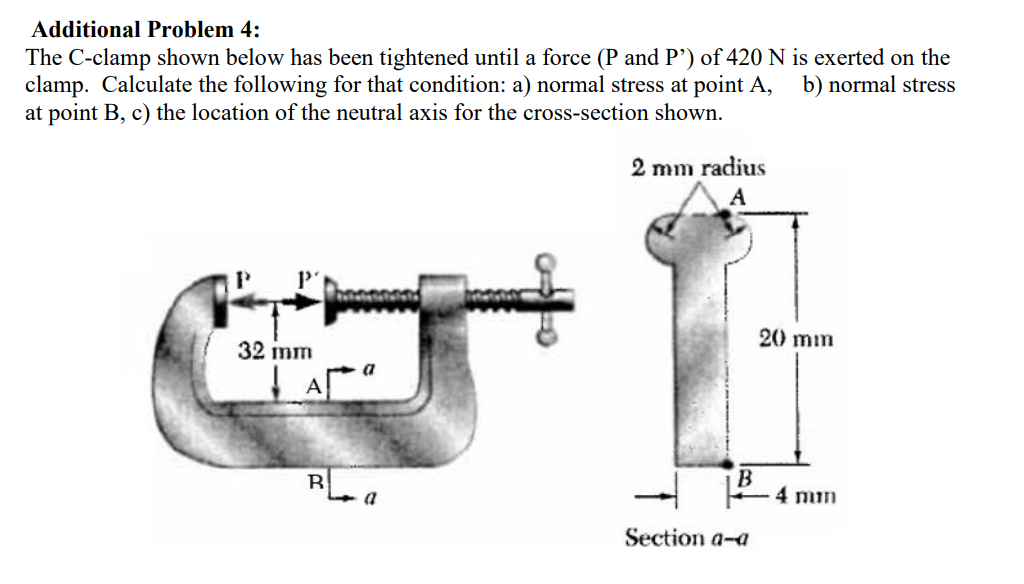

The C-clamp shown below has been tightened until a force ( P and \(\mathrm{P}^{\prime}\)) of 420 N is exerted on the clamp. Calculate the following for that condition: a) normal stress at point A , b) normal stress at point \( B, c \)) the location of the neutral axis for the cross-section shown. Answers are (Normal at A=49.9 MPa, Normal at B=-51.9 Mpa). PLZ HELP
Additional Problem 4 : The C - clamp shown below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
