Question: Advanced Physics Draw M and V diagrams and find the deflection at E ( location of 100KN force) given: 2 Pinned supported frame A= 17900

Advanced Physics

Draw M and V diagrams and find the deflection at E ( location of 100KN force) given: 2 Pinned supported frame A= 17900 mm^2 I = 1250x10^6 mm^4

Don't copy the previous answer it is wrong

Advanced PhysicsDraw M and V diagrams and find the deflection at E

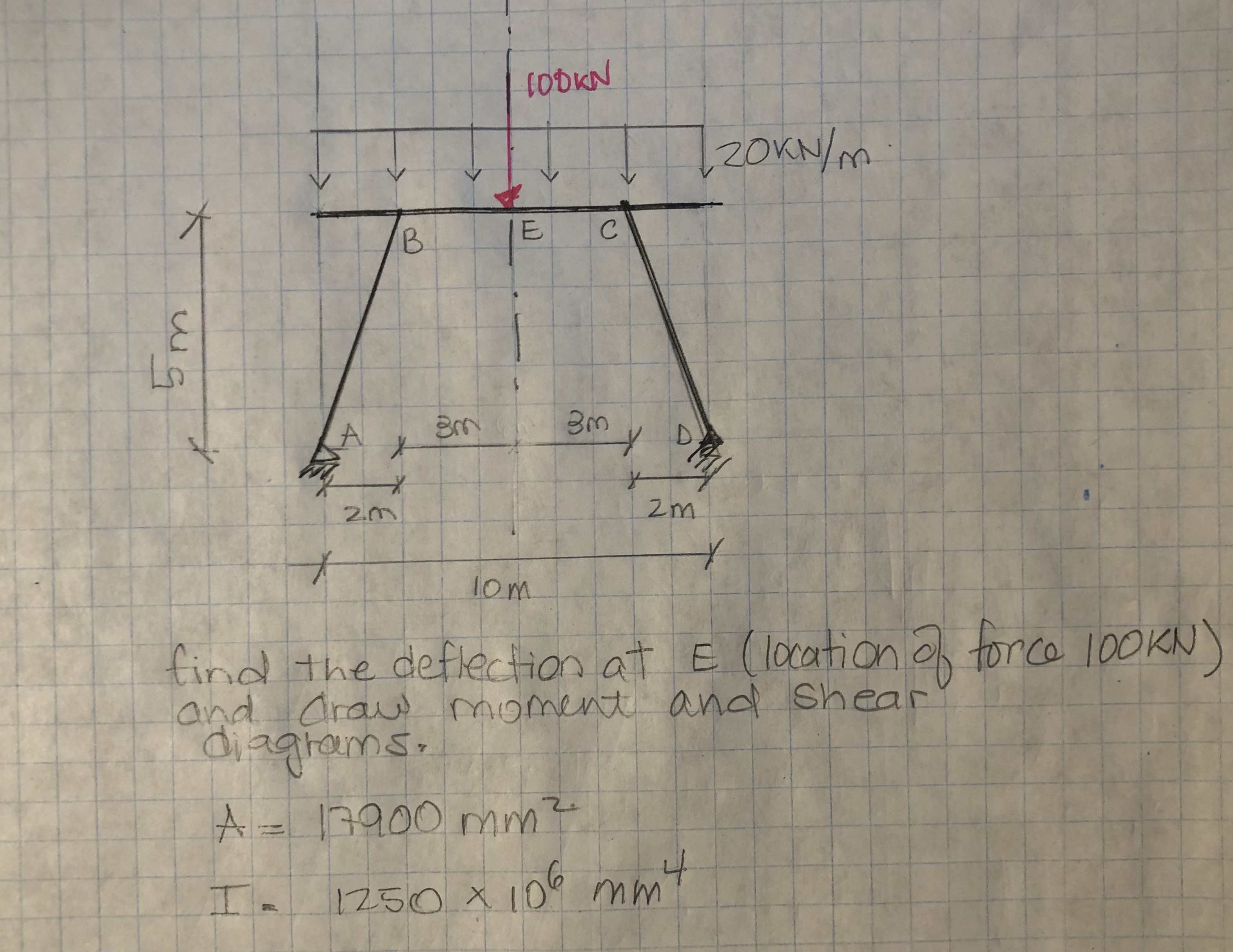

100KN 20KN / m B E C 5m x A 3 m D 2.m 2m 1om find the deflection at E ( location of force lookN ) and draw moment and shear diagrams . A = 17900 mm ? I = 1250 x 109 mm 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
