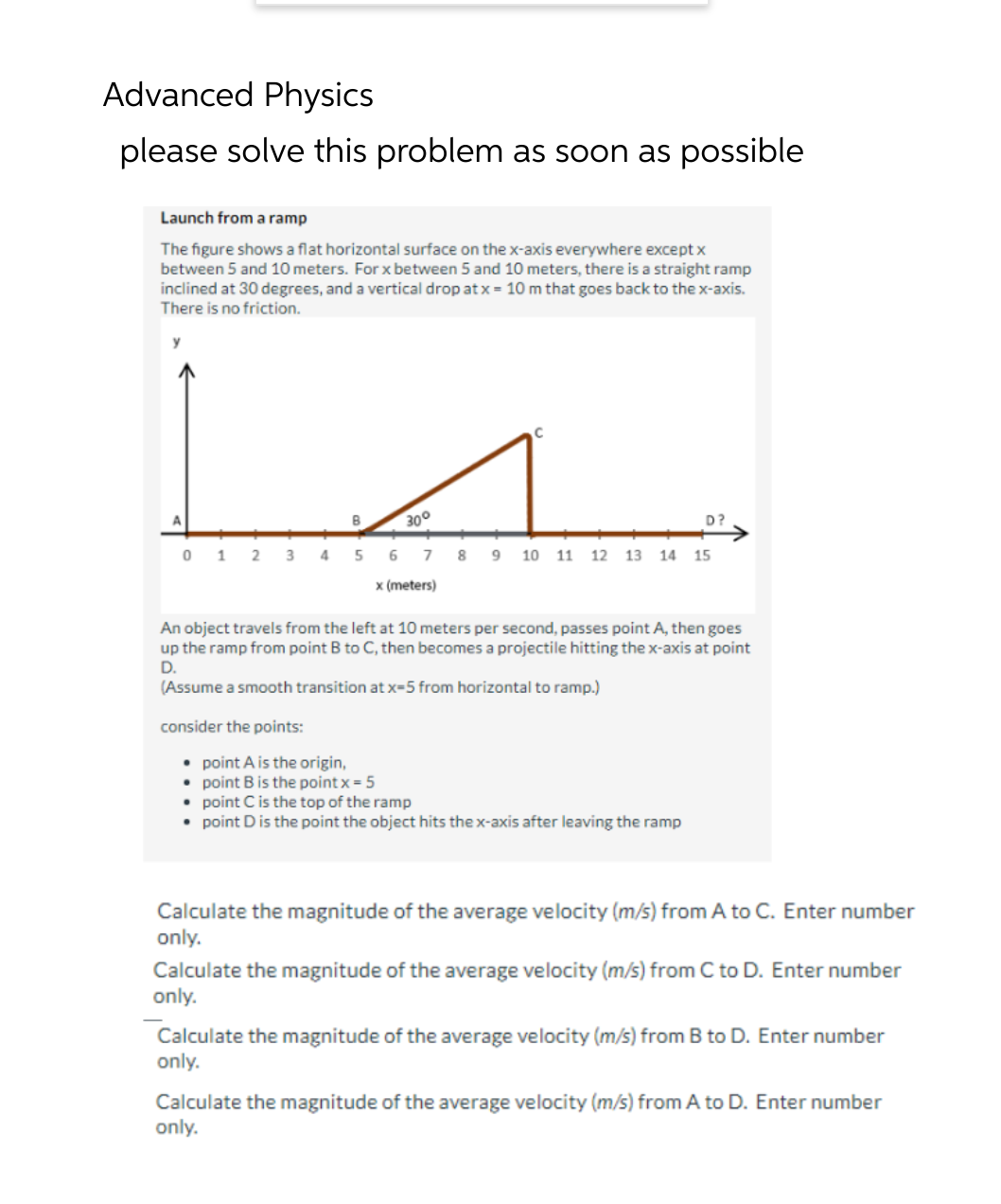

Advanced Physics please solve this problem as soon as possible Launch from a ramp The figure shows a flat horizontal surface on the x-axis everywhere except x between 5 and 10 meters. For x between 5 and 10 meters, there is a straight ramp inclined at 30 degrees, and a vertical drop at x = 10 m that goes back to the x-axis. There is no friction. 30 0 D? 2 3 5 6 7 8 9 10 11 12 13 14 15 x (meters) An object travels from the left at 10 meters per second, passes point A, then goes up the ramp from point B to C, then becomes a projectile hitting the x-axis at point D. (Assume a smooth transition at x=5 from horizontal to ramp.) consider the points: . point A is the origin, point B is the point x = 5 point C is the top of the ramp point D is the point the object hits the x-axis after leaving the ramp Calculate the magnitude of the average velocity (m/s) from A to C. Enter number only. Calculate the magnitude of the average velocity (m/s) from C to D. Enter number only. Calculate the magnitude of the average velocity (m/s) from B to D. Enter number only. Calculate the magnitude of the average velocity (m/s) from A to D. Enter number only
