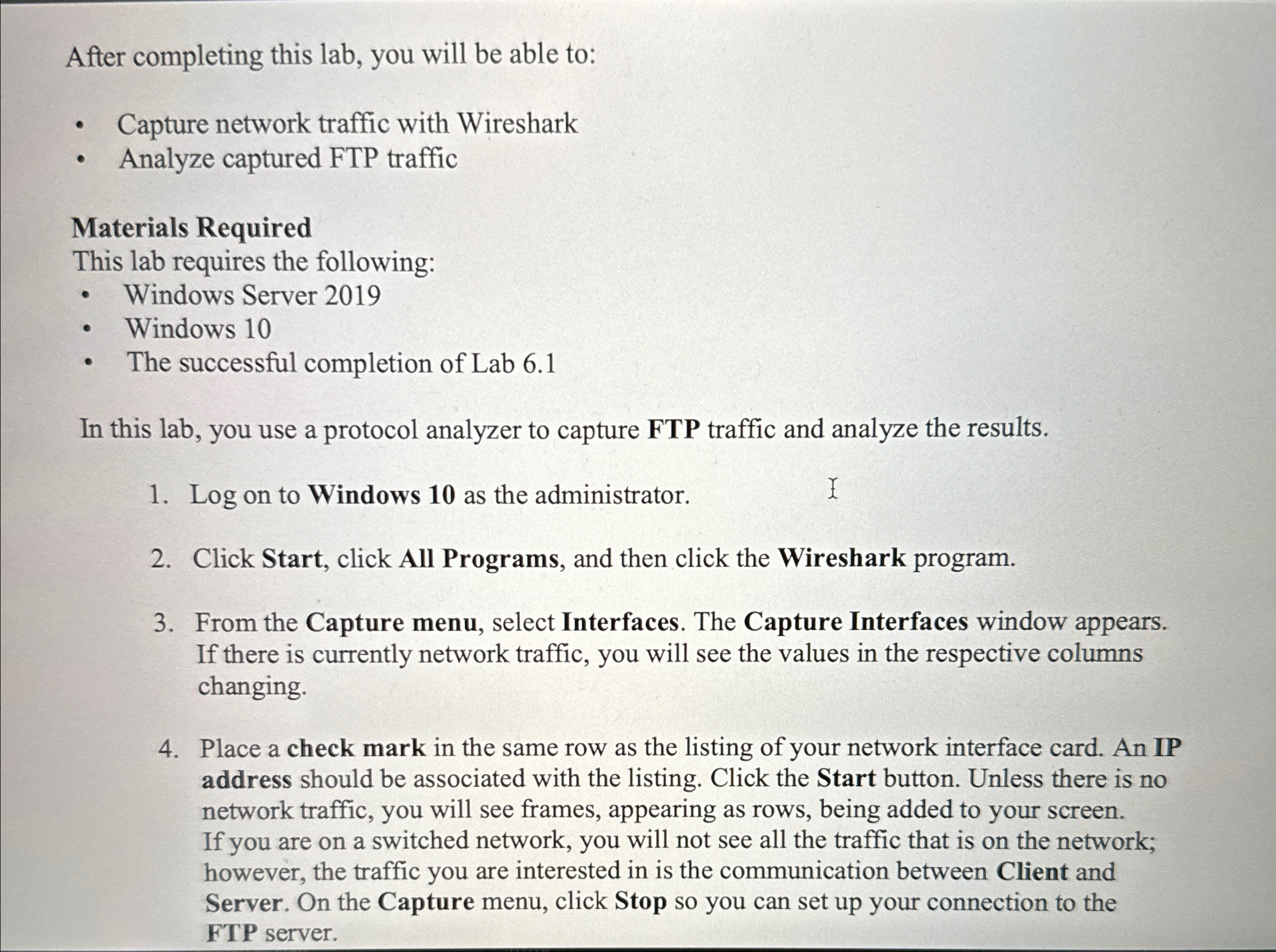

After completing this lab, you will be able to:

Capture network traffic with Wireshark

Analyze captured FTP traffic

Materials Required

This lab requires the following:

Windows Server $2019$

Windows $10$

The successful completion of Lab $6\mathrm{.}1$

In this lab, you use a protocol analyzer to capture FTP traffic and analyze the results.

Log on to Windows $10$ as the administrator.

Click Start, click All Programs, and then click the Wireshark program.

From the Capture menu, select Interfaces. The Capture Interfaces window appears. If there is currently network traffic, you will see the values in the respective columns changing.

Place a check mark in the same row as the listing of your network interface card. An IP address should be associated with the listing. Click the Start button. Unless there is no network traffic, you will see frames, appearing as rows, being added to your screen. If you are on a switched network, you will not see all the traffic that is on the network; however, the traffic you are interested in is the communication between Client and Server. On the Capture menu, click Stop so you can set up your connection to the FTP server.
