Question: Algorithm is: bypass algorithm Using the algorithm described in the class and in the textbook that transforms a transition graph into a regular expression, eliminate

Algorithm is: bypass algorithm

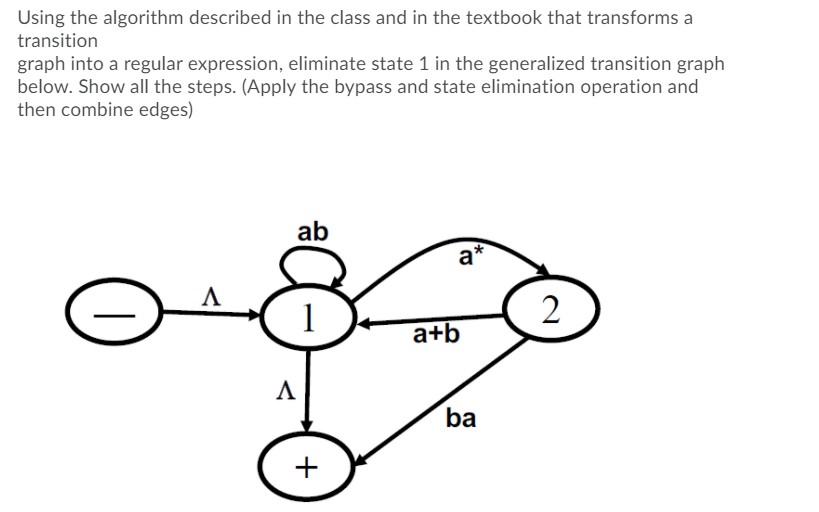

Using the algorithm described in the class and in the textbook that transforms a transition graph into a regular expression, eliminate state 1 in the generalized transition graph below. Show all the steps. (Apply the bypass and state elimination operation and then combine edges) ab a* 2 a+b ba +

Step by Step Solution

There are 3 Steps involved in it
