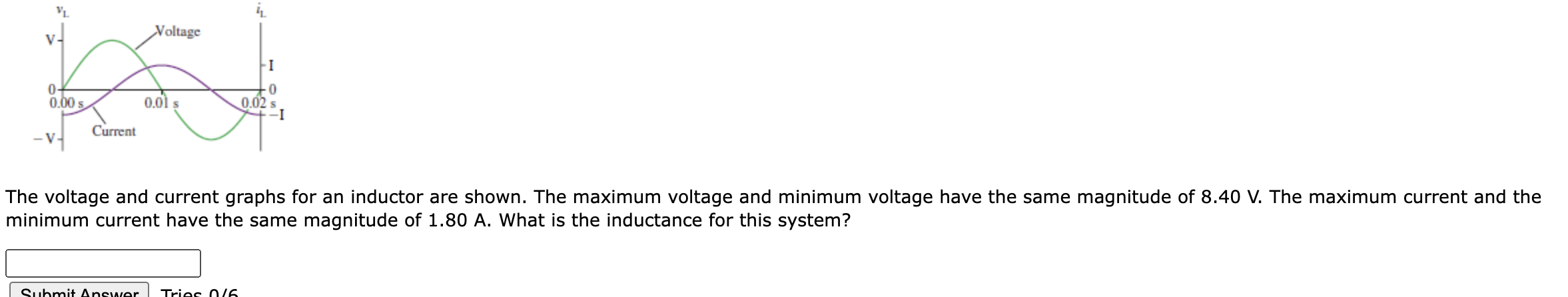

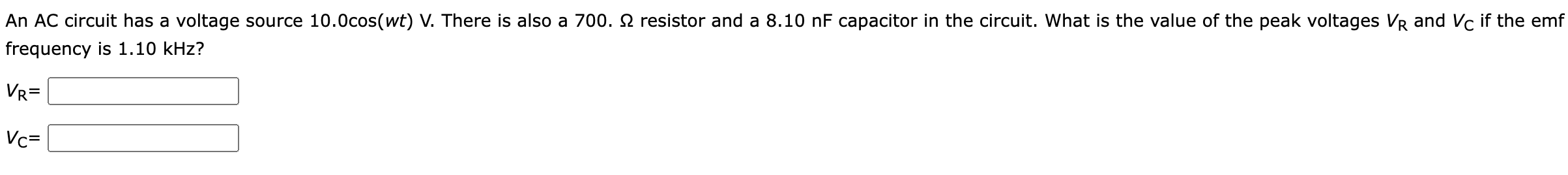

An AC circuit has a voltage source 10.0cos(wt) V. There is also a 700. $2 resistor and a 8.10 nF capacitor in the circuit. What is the value of the peak voltages VR and Vc if the emf frequency is 1.10 kHz? Voltage 0.00 s 0.01 0.02 s Current The voltage and current graphs for an inductor are shown. The maximum voltage and minimum voltage have the same magnitude of 8.40 V. The maximum current and the minimum current have the same magnitude of 1.80 A. What is the inductance for this system?An RLC circuit has a 43.0 9 resistor, a 8.30 mH inductor and a 281 nF capacitor. What is the peak current if the voltage source oscillates with a peak voltage of 6.40 V, with a frequency of 2.81x103 Hz? Magnitude: Submit Answer Tries 0/6A series RLC circuit has a capacitor with a capacitance of 44.0 UF , an inductor with an inductance of 1.20 H and a resistor with a resistance of 140. 2. The circuit is attached to a source that has a rms voltage of 49.0 V and a frequency of 92.0 Hz. What is the phase angle
